Description
Revolutionize Your SMT Assembly

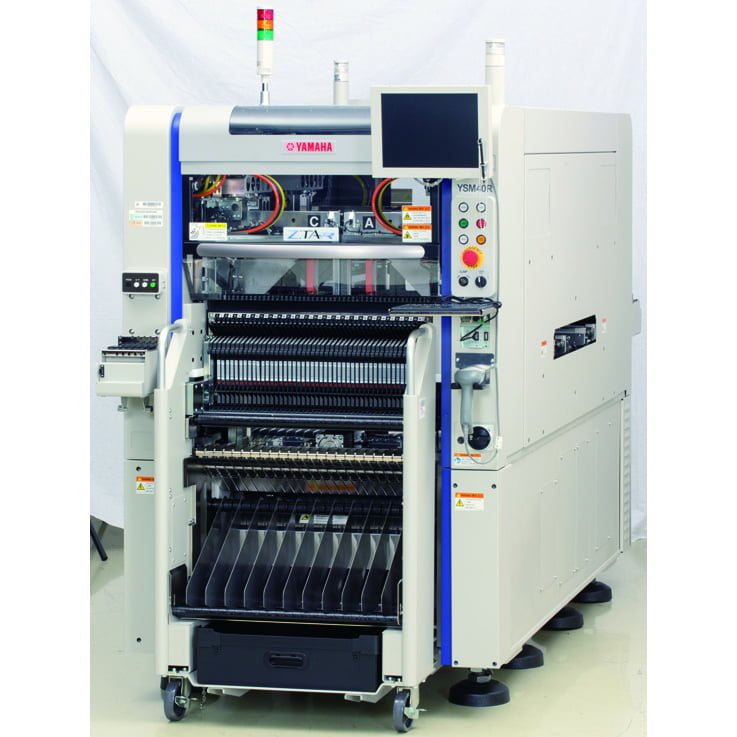

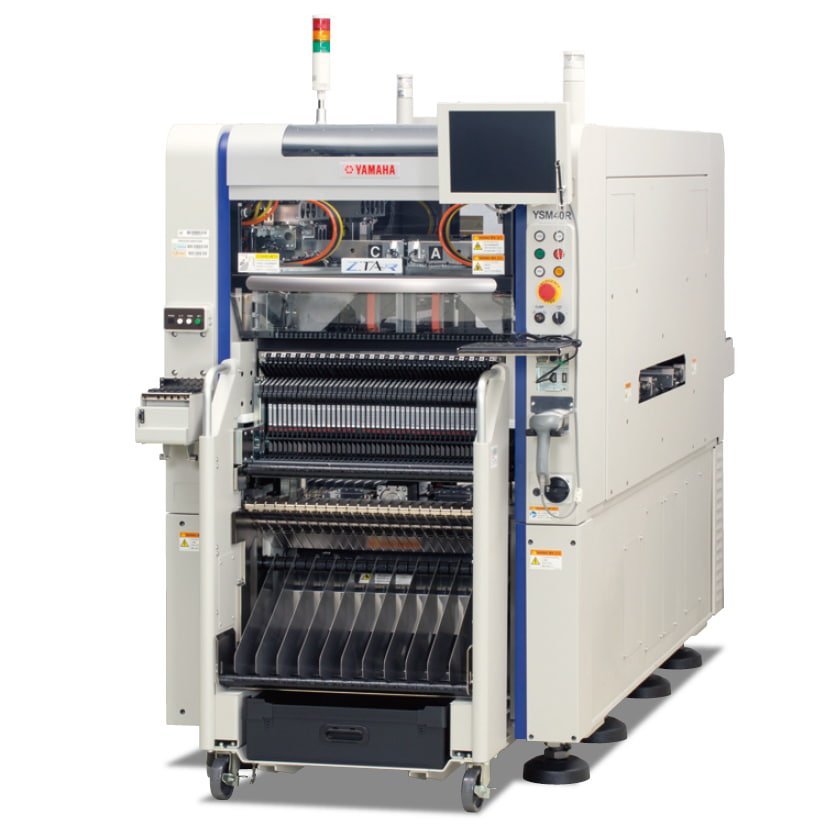

The Yamaha YSM40R (Z:TA-R) sets a new standard in surface mount technology with its unmatched speed and precision. Designed for high-volume manufacturing, this modular pick-and-place machine delivers industry-leading performance for advanced PCB assembly.
Unparalleled Speed and Efficiency
With a placement speed of up to 200,000 components per hour (CPH), the Yamaha YSM40R outpaces the competition. Its innovative rotary RS head ensures seamless and rapid operation, drastically reducing production time without sacrificing accuracy.
Space-Saving Design
This ultra-fast machine isn’t just about speed—it’s also designed with a compact footprint, allowing it to fit seamlessly into any production environment. Its sleek, space-conscious design ensures optimal use of your manufacturing space while delivering exceptional performance.
Optimize your PCB assembly process with the Yamaha YSM40R (Z:TA-R) and experience a significant boost in productivity and reliability.
Key Specifications & Features
- Speed: 200,000 CPH optimum under ideal conditions using the ultra-high-speed RS head.
- Head Options: Swappable between the high-speed RS rotary head (for tiny chips down to 0201mm) and the multi-purpose MU head (for broader component flexibility up to 45x60mm).
- Dual-Lane Production: Supports simultaneous dual-lane PCB tracking and placement to maximize line efficiency and output.
- Component Range: Handles ultra-small micro-chips, standard chips, and various square or odd-form surface mount components.
| Model | YSM40R | |||
| Version | 4-Beam, 4-Head Spec. (YSM40R-4) | |||
| Applicable PCB | L700 × W460mm to L50 × W50mm | |||
| Mounting Capability (Under Optimum Conditions As Defined By Yamaha Motor) | 200,000CPH (When using RS head) | |||
| Applicable Components |
| |||
| Mounting Accuracy *In The Company’s Optimum Conditions (Standard Material Used For Evaluation) | ± 35μm (25μm) ± 40μm (30μm) | |||
| Number Of Component Types * 8mm Width Tape Conversion | Max. 80 feeders with RS heads Max. 88 feeders with MU heads Max. 84 feeders with RS x 2 + MU x 2 heads | |||
| Side View | Compatible | |||
| Air Supply Source | 0.45 MPa or more, in clean, dry state | |||
| External Dimension | L1,000 × W2,100 × H1,550mm (excluding projections) | |||
| Weight | Approx. 2,100kg |
