Description

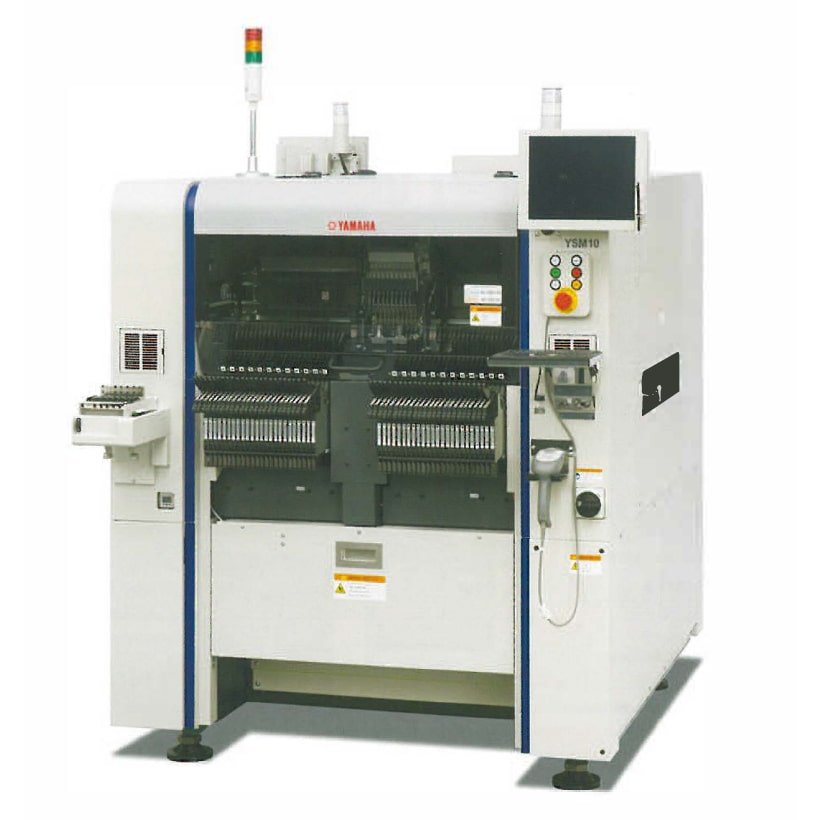

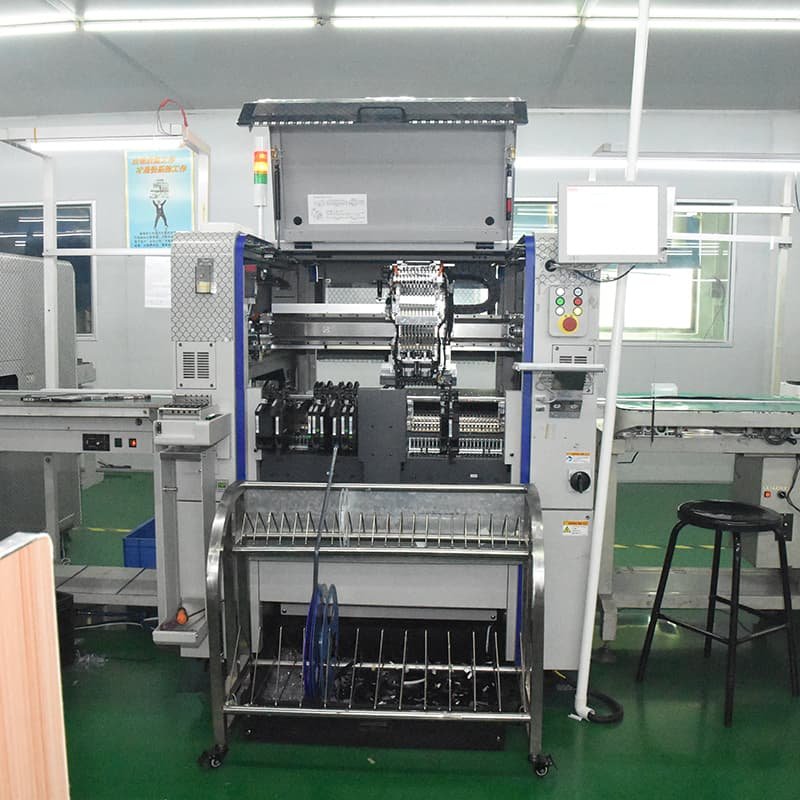

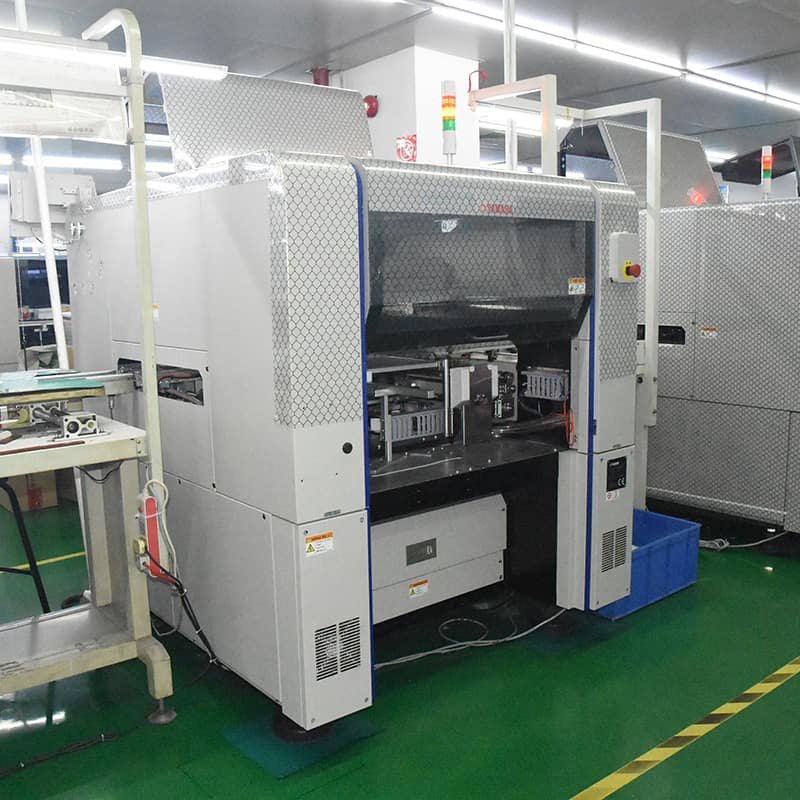

The Yamaha YSM10 is a cutting-edge solution for efficient PCB assembly. Designed as a compact, high-speed modular surface mount (SMT) pick-and-place machine, it optimally combines performance and versatility.
High-Speed Performance
Achieve productivity like never before with the Yamaha YSM10. This machine boasts an impressive placement speed of up to 46,000 components per hour (CPH), ensuring your production line meets even the most demanding schedules.
Innovative Single-Head Design
Streamline your workflow with the YSM10’s versatile single-head design. It seamlessly handles a range of components, from ultra-micro chips to larger modules, eliminating the need for time-consuming head changes and enhancing operational efficiency.
Compact and Space-Saving
The YSM10’s compact form factor makes it an excellent choice for facilities with limited space. This advanced SMT machine manages to deliver outstanding performance while requiring a smaller footprint.
Upgrade your PCB assembly processes with the Yamaha YSM10 – a reliable and versatile solution for modern electronic manufacturing.
Key Specifications
- Max Speed: 46,000 CPH (under optimum conditions with the HM 10-nozzle head)
- Placement Accuracy: ±0.035mm (±0.025mm high-precision option, Cpk ≥ 1.0)
- Component Range: From 03015 ultra-micro chips up to large 55 x 100mm parts (height up to 15mm)
- PCB Size Range: Standard L510 x W460mm down to L50 x W50mm (optional long board support up to L950mm)
- Feeder Capacity: Up to 96 tape feeder types (based on 8mm widths)
Unmatched Flexibility with the Advanced HM Head
The YSM10 is built for versatility, featuring the advanced HM (High-flexibility Multi) head that combines high speed with the ability to handle a broad range of components.
- Wide Component Range: Handles components up to 15mm in height and sizes up to W55 x L100mm using a multi-camera system, covering nearly all SMT component types.
- Advanced Vision: Equipped with a scanning camera (FOV □12mm) comparable to upscale models, ensuring accurate placement of various parts.
