Description
Compact Design Meets High-Speed Performance

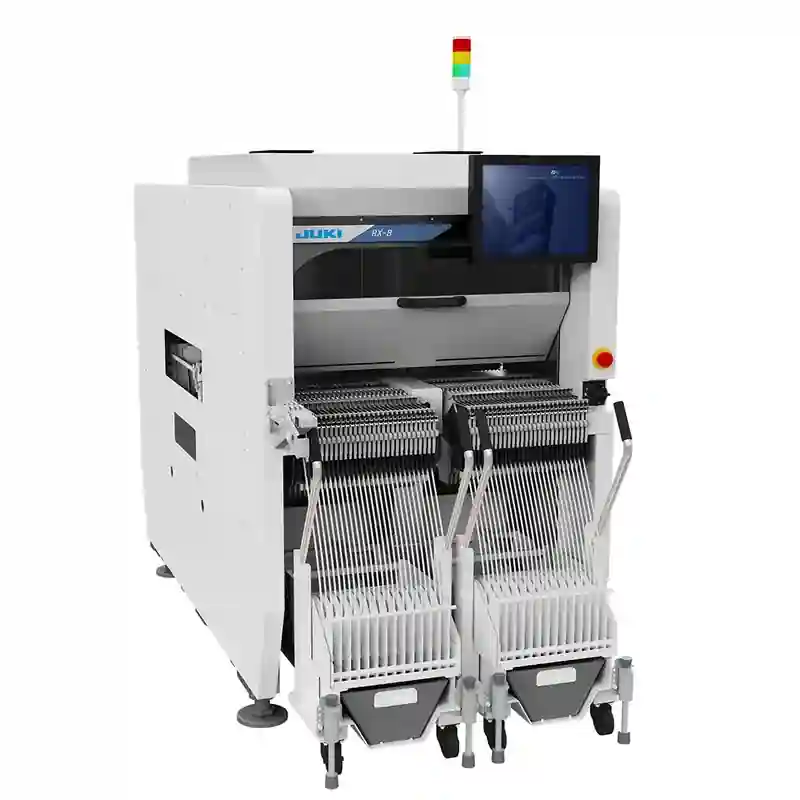

The JUKI RX-8 pick-and-place machine is the epitome of advanced engineering for surface mount technology (SMT) printed circuit board assembly. With its compact design measuring just 998 mm in width, this machine is built to save space while delivering unparalleled performance.
Exceptional Placement Speed
Capable of achieving a staggering 100,000 components per hour (CPH), the JUKI RX-8 is ideal for high-demand production environments. Its 20-nozzle rotating planet head ensures high precision and efficiency, making it a trusted solution for your PCB assembly needs.
Built for Precision and Efficiency
This pick-and-place machine guarantees consistent, high-quality results in a minimal footprint. Whether you streamline large-scale operations or optimize smaller production spaces, the JUKI RX-8 is tailored to keep up with the demands of modern electronics manufacturing.
Features
- High-speed placements of up to 100,000 CPH.*¹
- Best-in-class placement rate per square meter(sq ft).*²
- Integrates seamlessly with the production enviroment
- Trace Monitor tracks quality throughout production process
- Low impact placement for flexible circuits
- The P20 high-precision planet head is ideal for high speed pocking and placing from a single reel.
- State-of-the-art centering and inspection vision system
- New high accuracy camera for inspection and centering
Sepecification
| High -Speed Compact Modular Mounter RX-8 | ||
| Board size | 50×50～510mm*¹ *²×450mm | |
| Component height | 3mm | |
| Component size | 0201*³～□5mm | |
| Placement speed | Chip | 100,000CPH |
| (Optimum） | ||
| Placement | ±40μm (Cpk ≧1) | |
| Accuracy | ||
| Feeder capacity | Upto 56 *⁴ | |
| Power supply | 3-phase AC200V, 220V 430V *⁵ | |
| Apparent power | 2.1kVA | |
| Operating air pressure | 0.5±0.05MPa | |
| Air consumption (standard) | 20L/ min ANR (during normal operation) | |
| Machine dimensions (W x D x H)*⁶ | 998mm×1,893mm×1,530mm | |
| Mass (approximately) | 1,810 kg (with fixed bank)/ 1,760 kg (with bank changing) | |
*1 BOC, Bad Mark, and 2D barcode can be read only if board length is from 50mm to 350mm
*2 In long board mode (two boards can be produced simultaneously up to 420mm long).
*3 Please contact JUKI for details.
*4 When using RF08AS
*5 220V – 430V requires a separate transformer
*6 Depth D does not include the monitor, and height H does not include the signal light when the conveyor height is 900 mm.
