Description

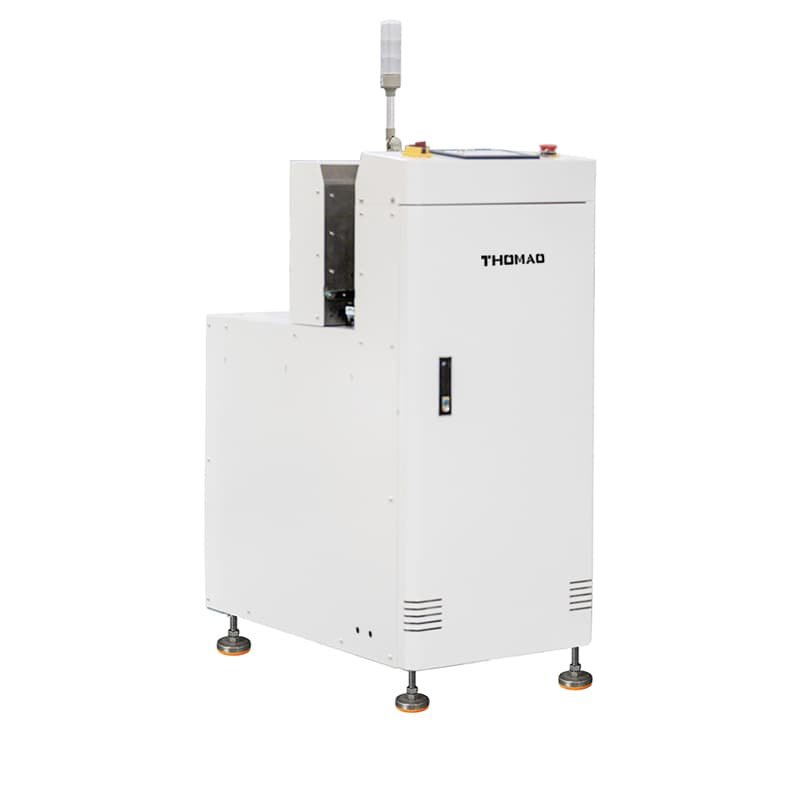

Effortless Board Automation with the PCB Stacker Destacker
The PCB Stacker Destacker for Bare Boards offers a streamlined, automated solution to improve efficiency in your SMT production line. Designed for ease of operation, this machine eliminates the need for standard board magazines, directly feeding or unloading bare PCBs onto the production line effortlessly.
Key Features for High-Performance Handling
Engineered with precision, this device boasts automated separation and feeding capabilities using advanced mechanical push-up or gravity systems. Its high-capacity design can handle up to 400 boards, depending on thickness, while maintaining a compact, space-saving footprint that seamlessly integrates into your workflow.
Enhanced Compatibility and Safety Standards
With SMEMA compatibility, the PCB Stacker Destacker ensures uninterrupted connectivity with stencil printers, pick-and-place machines, and other essential SMT equipment. Built with safety and precision in mind, it minimizes manual handling errors, prevents board scratching, and includes user-friendly PLC controls that conform to CE certification standards.
| Parameter | ||
| Description | This equipment is used to deastak / stackPCBs in the pro duction line | |
| Cycle time | Approx. 10seconds or specify | |
| Maximum PCBscapacity | 400pcs(0.6mm thick PCB) | |
| Powersupply | AC1P110V/220V | |
| Power | Max 100VA | |
| Air pressure | 4-6bar,10ltr/min max | |
| PCB thickness | 0.6mm min | |
| Transport height | 900+20mm(Or customized) | |
| Transport direction | From left to right or right to left | |
| Specification | ||
| Model | Dimension(L*W*H MM) | PCB size(MM) |
| LC-460W-TN | 550*889*1200 | 50*50-460*460 |
| LC-460W-TN | 503*889*1200 | 50*50-460*460 |
