Description
Effortless Double-Sided PCB Assembly

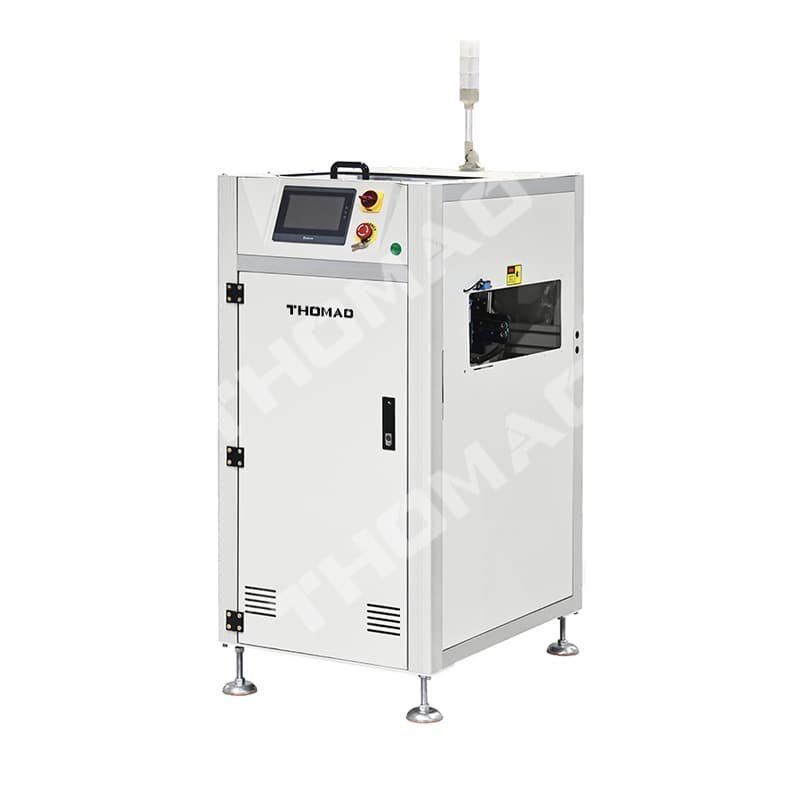

The Automatic PCB Inverter / Flipper is the ultimate solution for efficient printed circuit board handling. Designed specifically for double-sided assembly, coating, and inspection processes, this inline SMT machine ensures precise 180-degree rotations. Whether your production line requires flipping or bypassing, this device adapts seamlessly to your workflow.
Seamless Line Integration
Featuring standard SMEMA compatibility, the PCB Inverter / Flipper communicates easily with existing production systems such as pick-and-place machines, conveyors, or inspection stations. Its intuitive control system, operated via a PLC touch-screen or LED membrane panel, allows for easy navigation and automated fault diagnostics for smooth operations.
Safety and Adaptability Built In
Safety is paramount with the enclosed structural design that integrates torque limiters, emergency stops, and photoelectric anti-jamming sensors. Additionally, manual or automatic width adjustments ensure a perfect fit for various PCB sizes, making it a versatile addition to your production line.
| Technical Parameters | ||
| Description | This unit is used to invert PCBs(180) for “double-sided’process | |
| Cycle time | Approx.10 seconds | |
| Belt type | oblate belt | |
| Powersupply | AC1P110V/220V | |
| Power | Max 150VA | |
| Air pressure | 4-6bar 1.1ltr/min max | |
| Transport height | 900+20mm(Or customized) | |
| Transport direction | From left to right or right to left | |
| Specification | ||
| Model | BI-350W-TN | BI-460W-TN |
| Dimension(LW*H MM) | 500*725*1250 | 600*856*1250 |
| PCB size(MM) | 50*50-445*350 | 50*50-550*460 |
| Weight(KG) | 120 | 160 |
