Precision and Speed in One Machine

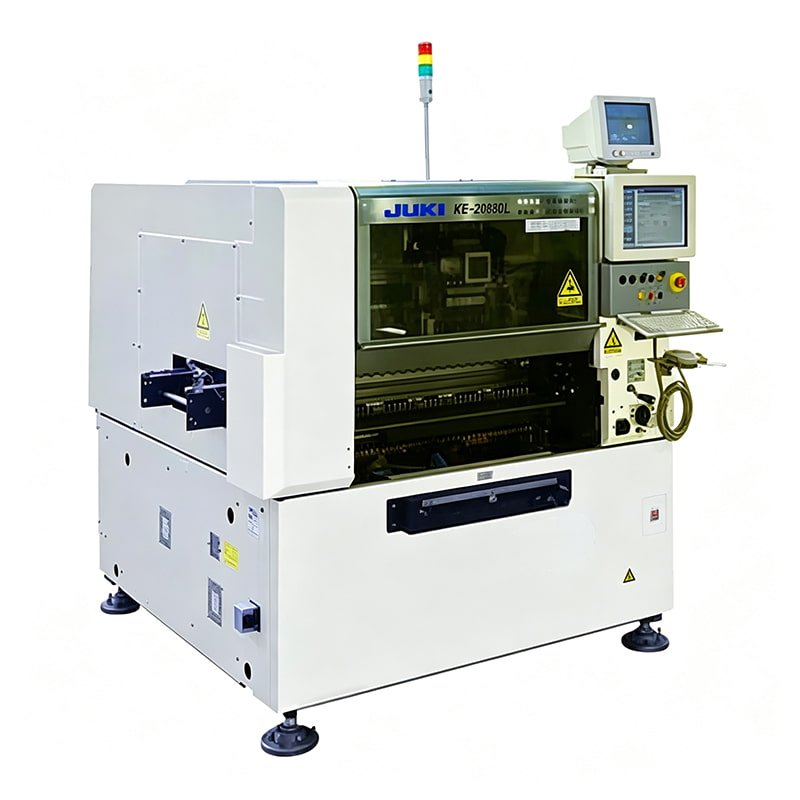

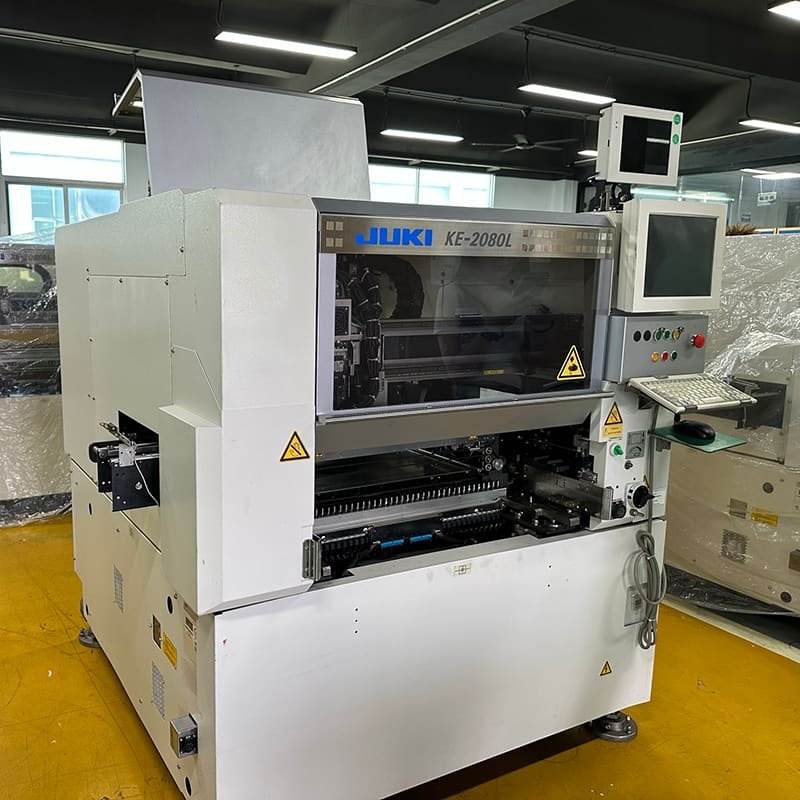

The JUKI KE-2080 sets a benchmark in surface-mount technology with its high-speed and ultra-flexible modular design. Engineered to meet the demands of modern manufacturing, it seamlessly combines efficiency and versatility for top-tier performance.
Advanced Component Handling
This state-of-the-art SMT pick-and-place machine features a 6-nozzle multi-nozzle laser head and a high-resolution vision head. Whether you’re placing tiny 0402 (01005) chips, large ICs, or uniquely shaped odd-form parts, the KE-2080 delivers precision and reliability. Its exceptional capabilities empower you to handle a broad range of components effortlessly.
Unmatched Throughput
Achieve unprecedented efficiency with speeds of up to 20,200 components per hour (CPH). The JUKI KE-2080 ensures seamless production without compromising precision, making it a valuable asset for high-performance manufacturing environments.
Key Specifications
- Placement Speed: Up to 20,200 CPH (laser chip optimum) or 1,850–4,860 CPH for ICs
- Component Range: 0402 (01005) chips up to 74mm square components or 50×150mm
- Placement Accuracy: ±0.05 mm via laser recognition; ±0.03 mm via vision recognition
- Feeder Inputs: Up to 80 stations (8mm equivalent)
- Standard Board Size: Up to 330 × 250 mm (with larger L-wide or E-size substrate options available)
Core Features
- Dual Head Design: Features one multi-nozzle laser centering head and one high-resolution camera centering head.
- On-the-Fly Alignment: Uses high-resolution laser sensors to center chips instantly without slowing movement.
- Modular Build: Easily integrates into automated printed circuit board (PCB) assembly lines for high-density production.
