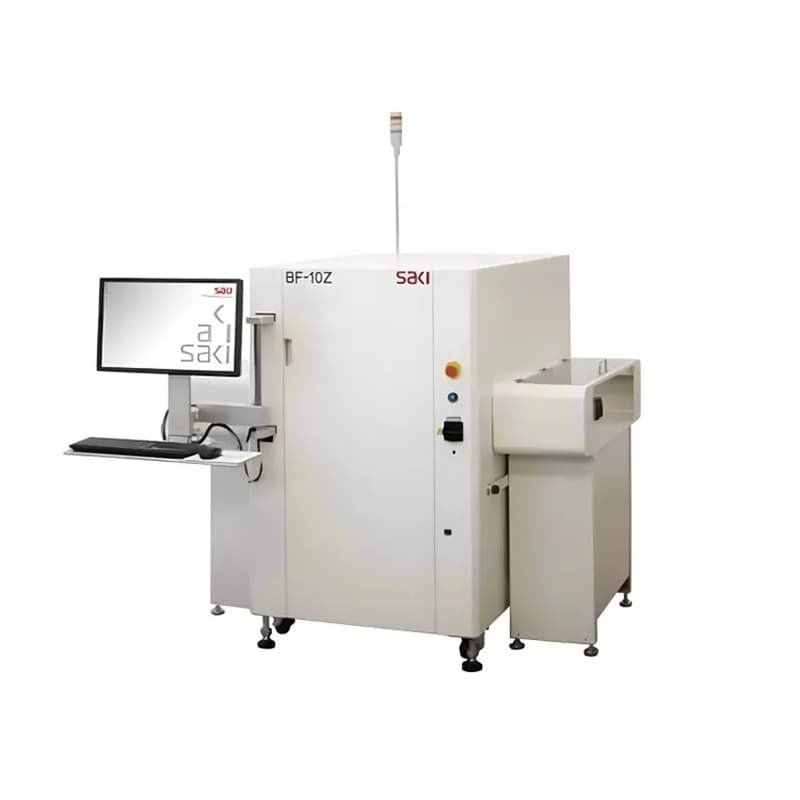

Enhance Your SMT Production with the SAKI BF-10Z
The SAKI BF-10Z is a cutting-edge, in-line 2D Automated Optical Inspection (AOI) system, meticulously designed for oversized Surface Mount Technology (SMT) assembly lines. Developed by Saki Corporation, it addresses the unique challenges of inspecting large-scale boards with unmatched precision and efficiency.
Exceptional Capabilities for Complex Assemblies
Capable of handling diverse assembly line requirements, the BF-10Z ensures accurate and reliable quality control across large or non-standard SMT configurations. Its state-of-the-art optics help minimize production defects while maximizing throughput for industrial applications.
Why Choose the SAKI BF-10Z?
This advanced AOI system delivers enhanced fault detection for oversized assembly lines, empowering your manufacturing operations with fast, accurate, and scalable inspection results. When precision matters, the BF-10Z stands as your go-to solution.
Key Features and Specifications
- Board Size Capacity: Handles XXL-size PCBs up to 870 × 686 mm (27.01 in. × 34.25 in.).
- Resolution Modes: Utilizes a Selective Resolution System allowing operations in 10µm or 20µm scanning modes.
- Scanning Technology: Employs line scan technology with a line color CCD camera and LED lighting to inspect components like 0201 chips efficiently.
- Scan Speed: Approximately 8 to 12 seconds depending on configuration.
Target Applications
- Ideal for oversized and heavy-duty electronics manufacturing.
- Commonly used for communication base stations, large server and storage assemblies, and LED back panels.
