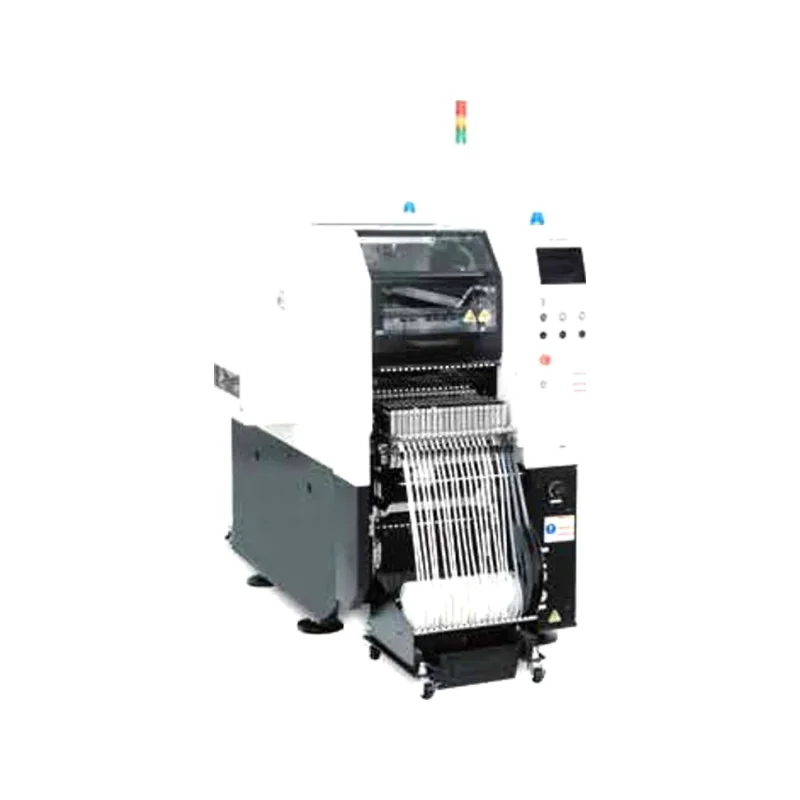

Panasonic VM101 — Compact Modular Placement Machine
Modular SMT Component Placers
The Panasonic VM Series includes advanced modular surface-mount technology (SMT) component placers engineered for precision and performance. Ideal for modern manufacturing lines, these machines offer high-speed, reliable placement of components, ensuring maximum productivity and minimal downtime.
Portable LCD Laser Projectors
Designed for business and education, Panasonic’s VM Series LCD laser projectors deliver exceptional image quality and versatility. With vibrant visuals, lightweight portability, and user-friendly features, they provide a seamless solution for presentations and events of any scale.
Unmatched Innovation and Versatility
The VM Series by Panasonic represents a blend of innovation and practicality. Whether enhancing manufacturing efficiency or elevating your projection experience, this product line stands as a trademark of cutting-edge technology and dependable performance.
Highlights:
- Compact modular placement machine (only 830 mm wide) for space-saving line configurations.
- Up to 42,000 cph (0.086 s/chip) with the Lightweight 16-nozzle head V2.
- Line is created with several machines via LNB (Line Network Box) to centralize and control information.
- Lightweight 8-nozzle head (22,500 cph) and 4-nozzle head (8,200 cph) selectable.
- Ideal for high-mix production with common-sequence PCB production for multi-product boards.
- Low power consumption of only 1.3 kVA and 100 L/min air.
Specification
| Model ID / Model No. | VM101 / NM-EJM3E |
| PCB dimensions | L 50 × W 50 mm to L 330 × W 250 mm (single-lane) |
| Max. speed (per head) | Lightweight 16-nozzle V2: 42,000 cph (0.086 s/chip); Lightweight 8-nozzle: 22,500 cph (0.160 s/chip); 4-nozzle: 8,200 cph (0.439 s/chip), 6,500 cph (0.554 s/QFP) |
| Placement accuracy (Cpk ≥ 1) | 16nz V2: ±30 µm/chip; 8nz: ±30 µm/chip, ±30 µm/QFP (□12–32 mm), ±50 µm/QFP (under □12 mm); 4nz: ±30 µm/QFP |
| Component dimensions | 0402 chip to L 6 × 6 × 3 mm (16nz V2); 0402 to L 45 × 45 × 12 or L 100 × 40 × 12 (8nz); 0603 to L 120 × 90 × 30 or L 150 × 25 × 30 (4nz) |
| Component supply | Taping: max. 80 (4/8 mm tape, double feeder); Stick: max. 20; Tray: max. 20 |
| Electric source | 3-phase AC 200–480 V, 1.3 kVA |
| Pneumatic source | 0.5–0.8 MPa, 100 L/min (A.N.R.) |
| Dimensions / Mass | W 830 × D 1,969 × H 1,500 mm / 1,500 kg |
Option:
- Lightweight 8-nozzle head / 4-nozzle head.
- Tray feeder and stick feeder supply units.
- LNB (Line Network Box) line configuration.
- Extension conveyor specifications for end-of-line positions.
