Description
Revolutionizing Electronics Manufacturing

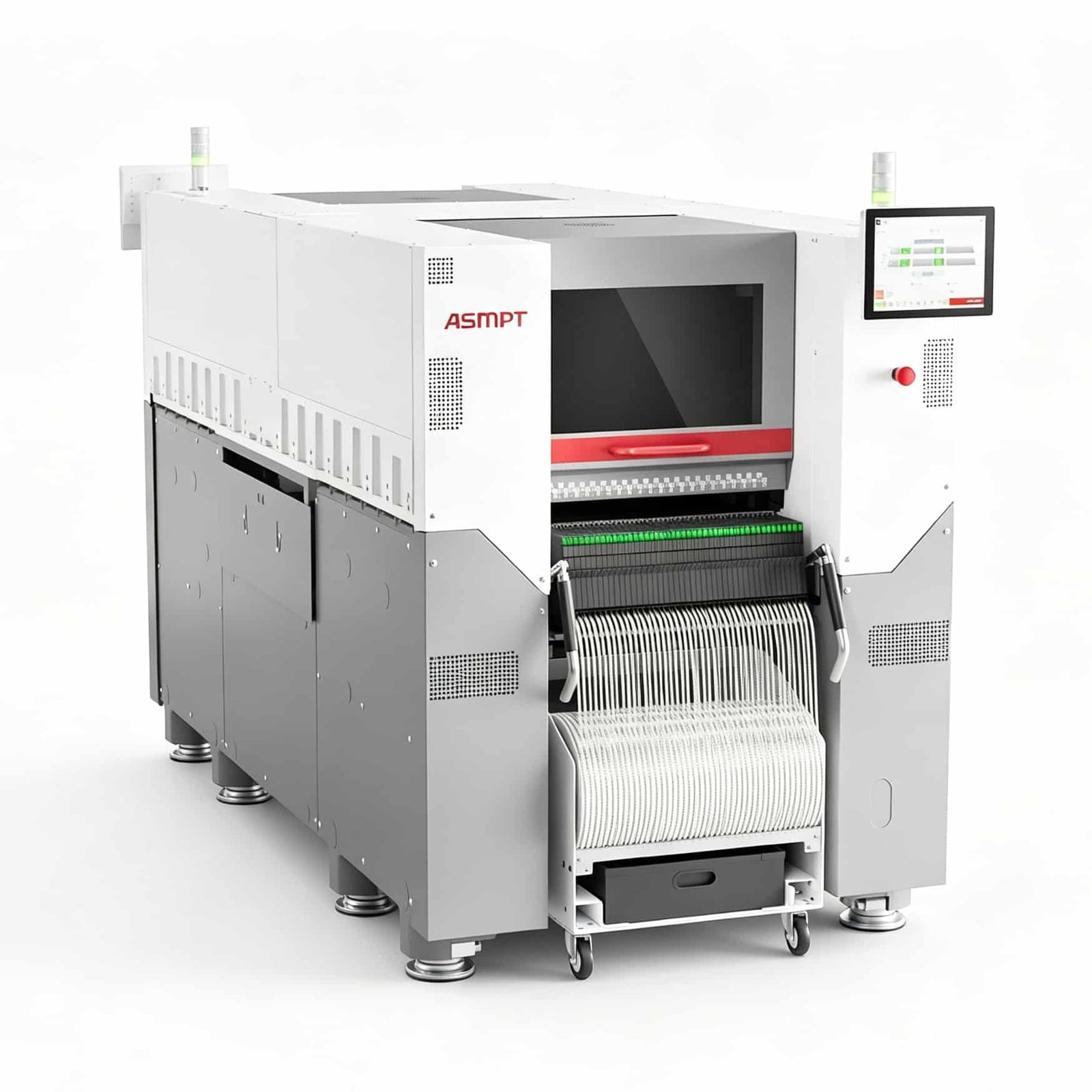

The SIPLACE V is an advanced surface mount technology (SMT) pick-and-place platform designed to meet the complex demands of modern electronics manufacturing. Engineered by ASMPT, this state-of-the-art system elevates efficiency and accuracy, enabling businesses to stay ahead in a competitive market.
Enhance Your Productivity
With its cutting-edge design and innovative features, the SIPLACE V consistently delivers up to 30% higher real-world performance. Whether handling intricate components or high-volume production, this platform is built to optimize your workflow and boost output.
Built for Modern Challenges
SIPLACE V combines precision and speed to ensure quality and reliability throughout the manufacturing process. Its advanced surface mount placement capabilities make it an ideal solution for businesses seeking to streamline operations and enhance their production capabilities.
he SIPLACE V from ASMPT SMT Solutions is a high-performance, modular pick-and-place platform for surface-mount technology (SMT) electronics manufacturing. It delivers up to a 30% increase in real-world performance, accommodates component sizes from 016008M chips to large odd-shaped components (OSCs), and features a compact footprint of 1.1 × 2.4 meters.
Key Technical Specifications
- Placement Speed: Up to 105,000 components per hour (cph)
- Standard Accuracy: ±25 µm @ 3 σ
- Machine Dimensions: 1.1 m (L) × 2.4 m (W) × 1.6 m (H)
- Feeder Capacity: Up to 90 feeder slots (8 mm tape)
Core Features
- Universal Head Interface: Allows placement heads to be swapped quickly while the machine remains operational.
- Smart Factory Ready: Equipped with Gigabit Ethernet for M2M communication, big data management, and integration paths for AI-driven process optimization.
- Full Compatibility: Fully compatible with existing ASMPT/SIPLACE software suites (like WORKS) and hardware accessories such as legacy feeders.
Sepecification
| Placement speed | 105,000 cph |
| Standard accuracy | ±25 µm @ 3 σ |
| PCB dimension (L × W) | up to 850 mm × 610 mm Single-lane mode up to 400 mm × 280 mm Dual-lane mode up to 700 mm × 530 mm Dual as single |
| Feeder slots | up to 90 x 8 mm tape feeders |
| Machine dimensions (L × W × H) | 1.1 m × 2.4 m × 1.6 m |
