Description
Unparalleled Speed and Efficiency

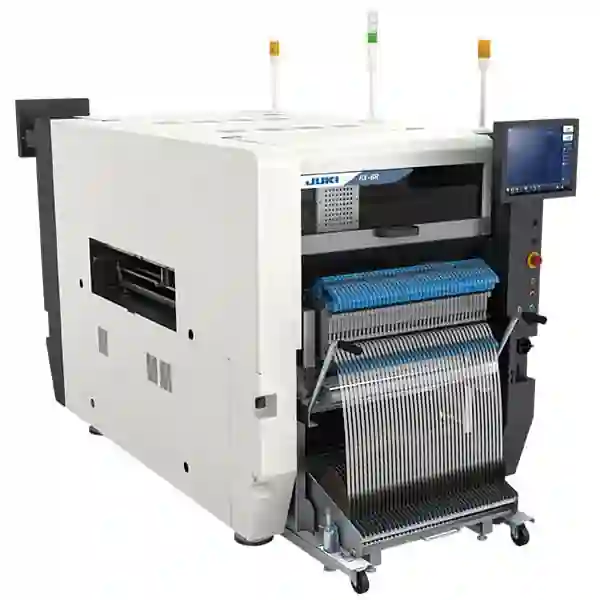

The Juki RX-6 is designed to redefine productivity, offering unmatched speed for your surface mount technology processes. With a remarkable performance of up to 52,000 components per hour (CPH), this machine is engineered to maximize efficiency, delivering fast and precise results.
Compact and Space-Saving Design
Featuring a slim and compact 1.25-meter wide footprint, the Juki RX-6 ensures minimal space usage while maintaining high-capacity functionality. Its modular design allows seamless integration, making it an ideal choice for operations where space is at a premium.
Dual-Head Precision Performance
Equipped with a dual-head layout, the Juki RX-6 combines speed and accuracy to handle complex pick-and-place tasks with ease. This innovative design optimizes performance, ensuring consistent placement accuracy for a wide range of components.
Features
- Placement speed :
Chip : 42,000CPH(Optimum)*1
26,000CPH(IPC9850)
IC : 14,000CPH*1*4 - Component size : 0402～□50mm*2
0402～□100mm/50×180mm*3 - Laser recognition : ±0.04mm(±Cpk≧1)
- This is applicable to dual-lane production.
- Compact footprint : the width is just 1.25m
- Equipped with standard Placement Monitor check function.*2*4
- Replaceable head allow you to configure a production line best suited to the current repirments.
- High-speed component placement using high-speed non-stop vision recognition.
- Wide range of components and boards: tall components, large components and large boards.
- Brand new Matrix Tray Sever TR8S improves the component capability and productivity.
*1 when using 6 × 6 nozzle head
*2 when using 6 nozzle head
*3 when using 3 nozzle head
*4 Option for RX-6B
Specifications
| High-Speed Compact Modular Mounter | ||||||
| 6×6 nozzle head | 6×3 nozzle head | |||||
| RX-6 | RX-6B | RX-6 | RX-6B | |||
| Board size | single lane conveyor | 50Ｘ50～610Ｘ590 / 905X590mm(2times clamping) | ||||
| dual lane conveyor | 50×50～360×250㎜※1 | |||||
| Component height | 6/12/20/25/33mm | |||||
| Component size | Laser recognition | 0402～□50mm | 0402～□33.5mm(3 nozzle head) | |||
| 0402～□50㎜(6 nozzle head) | ||||||
| Vision recognition | Standard camera*2 | □3～□33.5mm | □3～□100mm/50×180mm | |||
| High-resolution camera | 1005～□20mm | 1005～□48mm/24×72mm | ||||
| Placement speed | Chip | Optimum*3 | 42,000CPH | 34,000CPH | ||
| IPC9850 | 26,000CPH | 23,000CPH | ||||
| IC*4 | 14,000CPH | 11,000CPH | ||||
| Placement accuracy | Laser recognition | ±0.04mm(Cpk≧1) | ||||
| Vision recognition*2 | ±0.04mm | ±0.04mm | ||||
| Component loading quantity | Max.160 in case of 8mm tape feeder | |||||
| (on a Electonic double tape feeder)) | ||||||
| Component recognition Camera(VCS) | Standard | Option | Standard | Option | ||
| Placement monitor Inspection function | Standard | Option | Standard | Option | ||
| Auto tape cutter | Standard | Option | Standard | Option | ||
| Nozzle | Standard | Option | Standard | Option | ||
| Force control | Standard | Option | Standard | Option | ||
| Virus measurement Software(white list) | Standard | Standard | Standard | Standard | ||
*1 Single lane conveyor specification mode max 360 × 450 mm
*2 Option for RX-6B
*3 when using the single lane conveyor specification
*4 Placement speed of IC components is estimated value when placing 36 pieces QFP component (dimension 10mm square or smaller) on M size PWB overall,picking from both front and rear side with all nozzles simultaneously.
