Ultimate Productivity Designed for Modern Assembly Lines

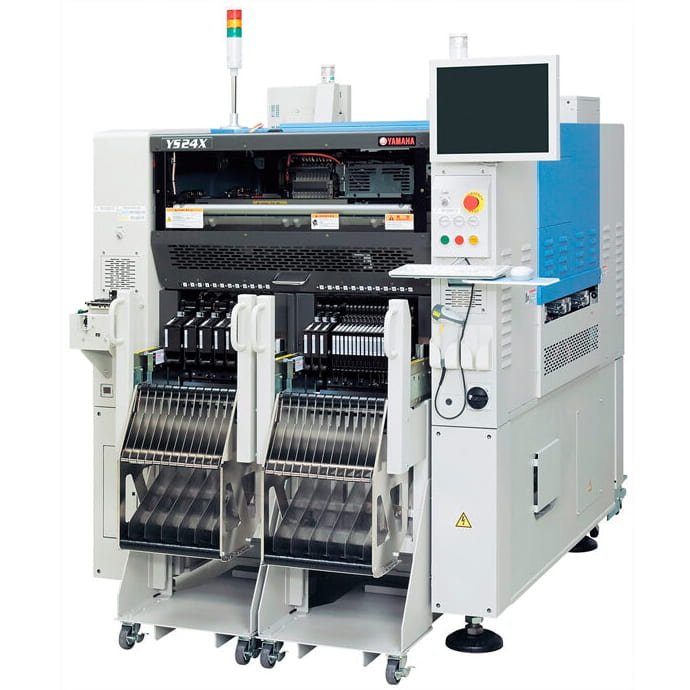

The Yamaha YS24X stands out as a compact and high-speed modular mounter built to revolutionize Surface Mount Technology (SMT) assembly processes. This advanced machine delivers unparalleled performance, making it an integral solution for dynamic production environments. With its intelligent design and swift operation, the YS24X tackles even the most demanding manufacturing challenges effortlessly.
Superior Versatility for Diverse Applications
Engineered with exceptional flexibility in mind, the Yamaha YS24X seamlessly accommodates a wide range of assembly needs. Its state-of-the-art architecture ensures precise component placement, whether for intricate PCB designs or high-volume orders. The unit is as adaptable as it is efficient, perfect for businesses aiming to optimize both speed and accuracy.
A Next-Generation Choice for Cost-Efficiency
As one of the industry’s top-performing multi-purpose mounters, the Yamaha YS24X offers both speed and reliability in a compact footprint. By enhancing productivity across the board, it minimizes downtime and maximizes output. Whether for small-scale operations or large-scale production, the YS24X is a game-changer for modern SMT assembly lines.
Yamaha YS24X: High-Speed Modular Mounter for Large Boards & Complex Components
The Yamaha YS24X is a compact, high-speed modular mounter engineered to redefine productivity and flexibility in SMT assembly lines. As the industry’s top-performing multi-purpose mounter, it delivers an exceptional mounting capability of 54,000 CPH (0.067 sec/chip), making it an ideal solution for high-mix, high-volume production environments
High-Performance Mounting for Advanced Applications
At the core of the YS24X’s speed are two independent, rigid dual-drive beams, each equipped with a 10-nozzle inline multi-head -3. This configuration allows for simultaneous, high-speed component placement without compromising accuracy. The system achieves a mounting accuracy of ±0.05mm (μ+3σ) for both chips and QFPs, with outstanding repeatability of ±0.03mm (3σ).
Unmatched Versatility and Component Range
Designed to meet the demands of modern electronics manufacturing, the YS24X handles a wide array of components:
- Component Size: From ultra-small 0402 chips to large, irregular-shaped components up to 45mm x 45mm and a maximum height of 15mm
- Large Board Support: Accommodates extra-large PCBs up to L700 x W460mm, making it perfect for LED lighting, large flat-panel TV, and industrial-use PCB production.
- Advanced Vision & Inspection: Features multi-functional cameras with vertically adjustable side lights for accurate verification of BGA/CSP components, alongside a coplanarity checker to ensure electrode connection reliability for QFP and large SOP components .
Optimized for Efficiency and Integration
The YS24X is designed for seamless integration and operational efficiency:
- Flexible Feeder System: Compatible with Yamaha’s intelligent “SS Feeder” for high-speed, precise component supply, and supports mixed use of electric and pneumatic feeders to minimize investment costs .
- Automatic Tray Supply: An optional sATS (15-tray x 2 magazine) automatic tray supply unit enables support for a greater variety of component types without interrupting production .
- Compact Footprint: Despite its large PCB handling capability, it maintains a compact size (1,254mm width), optimizing valuable factory floor space .
With its industry-leading speed, unparalleled component flexibility, and robust build quality, the Yamaha YS24X is a strategic investment for any SMT line aiming to enhance throughput, quality, and adaptability for current and future production challenges.
