Description
Proven Performance Across the Globe

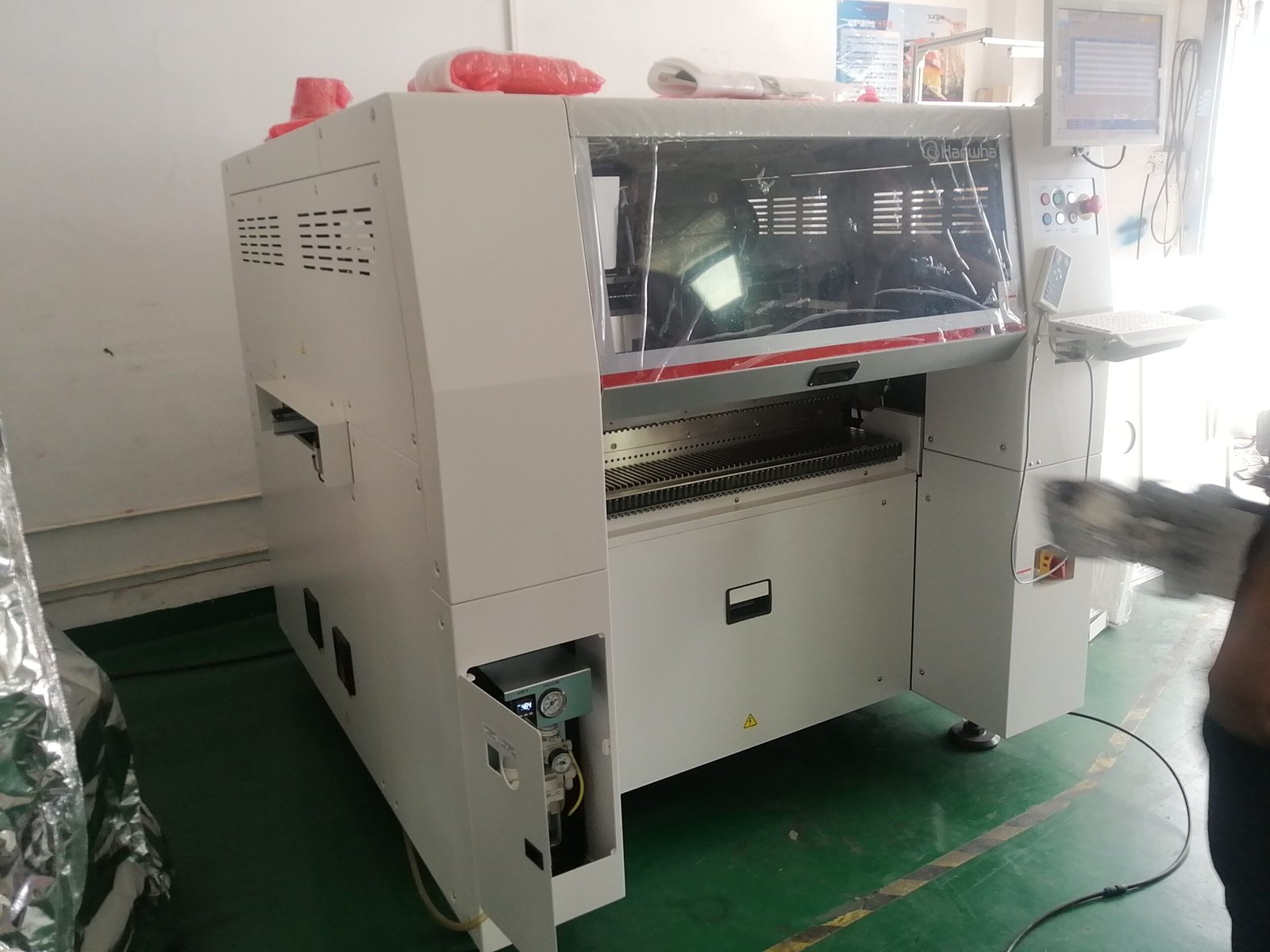

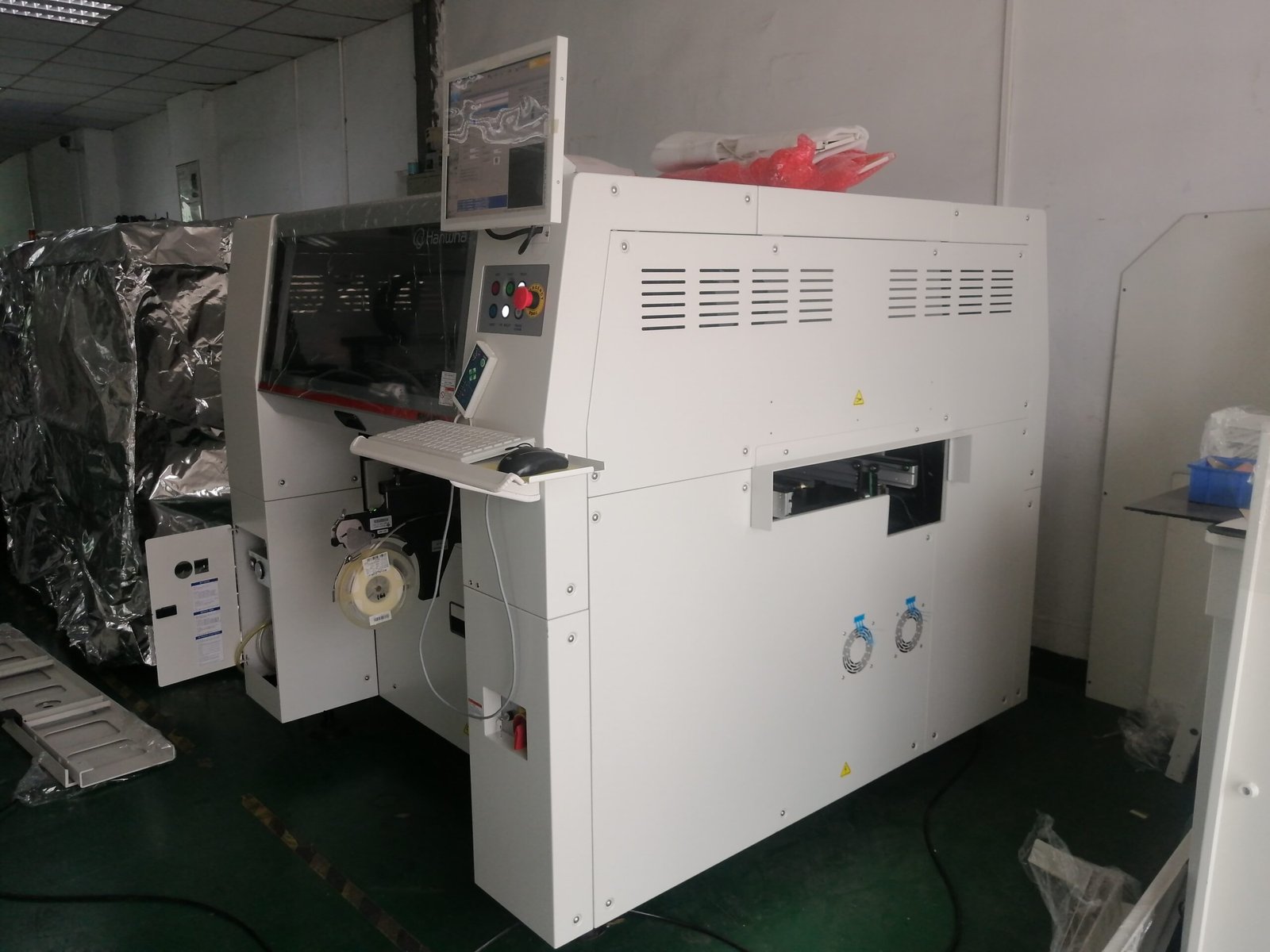

The SM482PLUS is a trusted solution for precision placement, celebrated by users worldwide. As part of the acclaimed SM series, its proven track record highlights its unmatched reliability in diverse applications.
Versatility Across Component Sizes
Engineered for flexibility, the SM482PLUS excels in placing everything from minuscule chips to larger ICs and connectors. Its multi-functional design ensures seamless operation for varying production needs.
Why Choose the SM482PLUS?
Designed with cutting-edge technology, this placer guarantees accuracy, efficiency, and consistency, making it an ideal choice for businesses looking to enhance productivity and quality in their assembly processes.
Key Features & Benefits
- High-Precision Placement: Achieves outstanding accuracy with ±40μm @ ±3σ for chip components and ±30μm @ ±3σ for QFP packages, ensured by its high-pixel vision system.
- Flexible Component Handling: Equipped with both a Fly Camera and a Fix Camera (as standard), it handles a broad component range:
- Fly Camera: Supports components from 0603 up to □22mm (0402 to □14mm).
- Fix Camera: Supports large components up to □55mm and connectors up to L75mm.
- Advanced Vision & Recognition: Adopts a powerful camera algorithm that improves recognition accuracy through noise removal and automatic teaching. The Polygon Recognition Algorithm allows for easy registration of even complex-shaped components by extracting and recognizing their entire shape.
- Operational Efficiency: Features a Multi-Vendor Component Management Function, enabling the use of identical components from different feeders without the need to change or re-download the PCB file, thus saving setup time.
| Specification | Detail |
| Alignment | Fly Camera + Fix Camera |
| Spindle Configuration | 1 Gantry * 6 Spindles |
| Placement Speed | 30,000 CPH (Optimum) |
| Placement Accuracy | Chip: ±40μm @ ±3σ QFP: ±30μm @ ±3σ |
| Component Range | Fly: 0603 ~ □22mm (0402 ~ □14mm) Fix: ~ □55mm, L75mm Connector |
| Max. Component Height | 12 mm (Fly) / 15 mm (Fix) |
| PCB Size (Max) | Single Lane: L460 x W400 mm (Standard), up to L1,500 x W460 mm (Option) Dual Lane: up to L610 x W250 mm (Option) |
| Feeder Capacity | 120 ea / 112 ea (Docking Cart) for 8mm tape |
| Power | AC200/208/220/240/380/415V (50/60Hz, 3Phase), Max. 3.5 kVA |
| Air Consumption | 180 Nℓ/min (Main) / 50 Nℓ/min (Vacuum Pump) |
| External Dimension | L 1,650 x D 1,680 x H 1,530 mm |
