Exceptional Performance in PCB Assembly

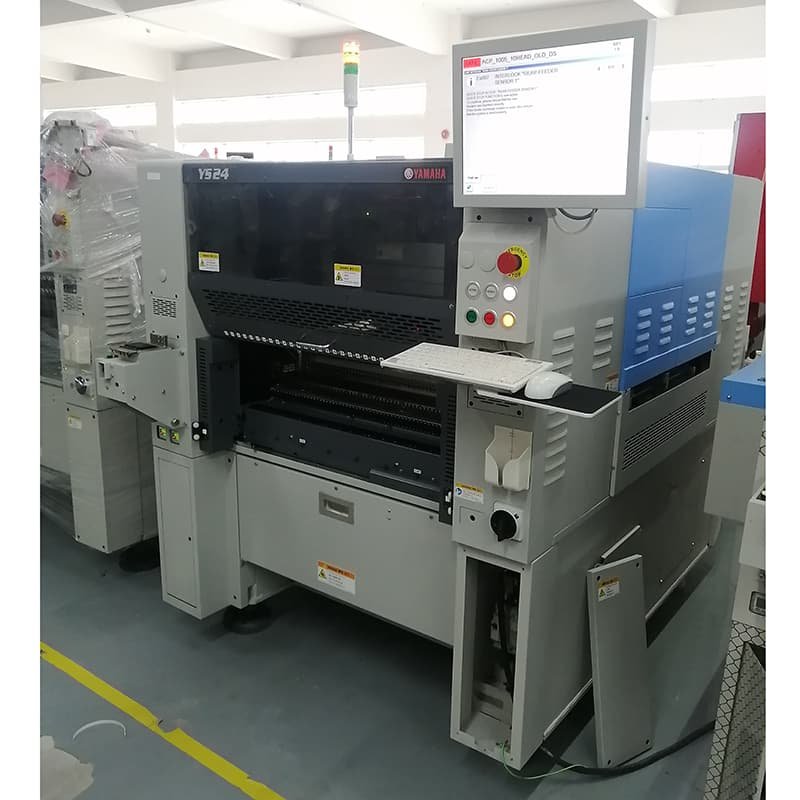

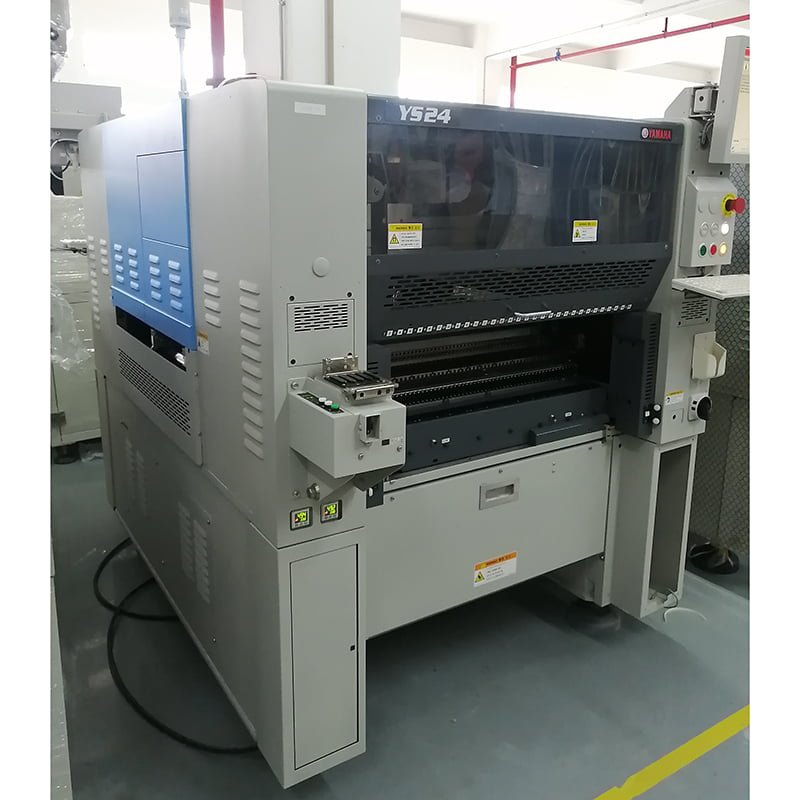

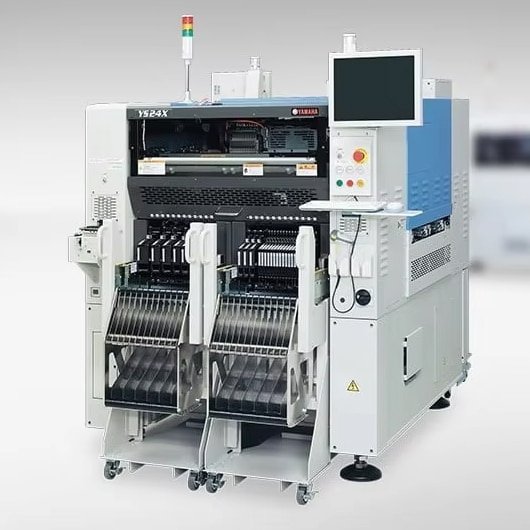

The Yamaha YS24 is a high-speed, compact modular SMT pick-and-place machine designed to elevate efficiency in printed circuit board (PCB) assembly. With the capacity to achieve placement speeds of up to 72,000 components per hour (CPH), it ensures rapid and accurate operation for high-demand manufacturing environments.
Versatile Board Handling
Capable of managing board sizes up to L700 × W460mm, the Yamaha YS24 provides outstanding flexibility for diverse assembly requirements. Whether it’s a small-scale prototype or a full-scale production run, this machine adapts seamlessly to varied needs without compromising quality or speed.
Compact Design, Maximum Efficiency
Engineered to save space on your production floor, the Yamaha YS24 combines a compact footprint with state-of-the-art technology. This efficient design doesn’t just save your workspace but also optimizes your production line for unparalleled performance and output.
Key Specifications
- Placement Speed: 72,000 CPH (0.05 seconds per chip)
- Placement Accuracy: ±0.05 mm (μ + 3σ)
- Component Range: 0402 microchips up to 32 × 32 mm parts (max height 6.5 mm)
- Max Feeder Capacity: Up to 120 tape feeders
- Applicable PCB Size: L50 × W50 mm to L700 × W460 mm
- Machine Dimensions: 1,254 mm (L) × 1,687 mm (W) × 1,445 mm (H)
- Weight: Approximately 1,700 kg
Features
- Dual Stage Conveyor: Features a dual-stage setup allowing front and rear heads to place parts simultaneously, maximizing space efficiency.
- High Area Productivity: Delivers high output per square meter, tailored for dense, high-volume mass production lines.
- Multi-Head Design: Incorporates dual sets of narrow-pitch inline multi-heads to optimize travel and pick-up movement.
