Description
Exceptional Performance for Modern Manufacturing

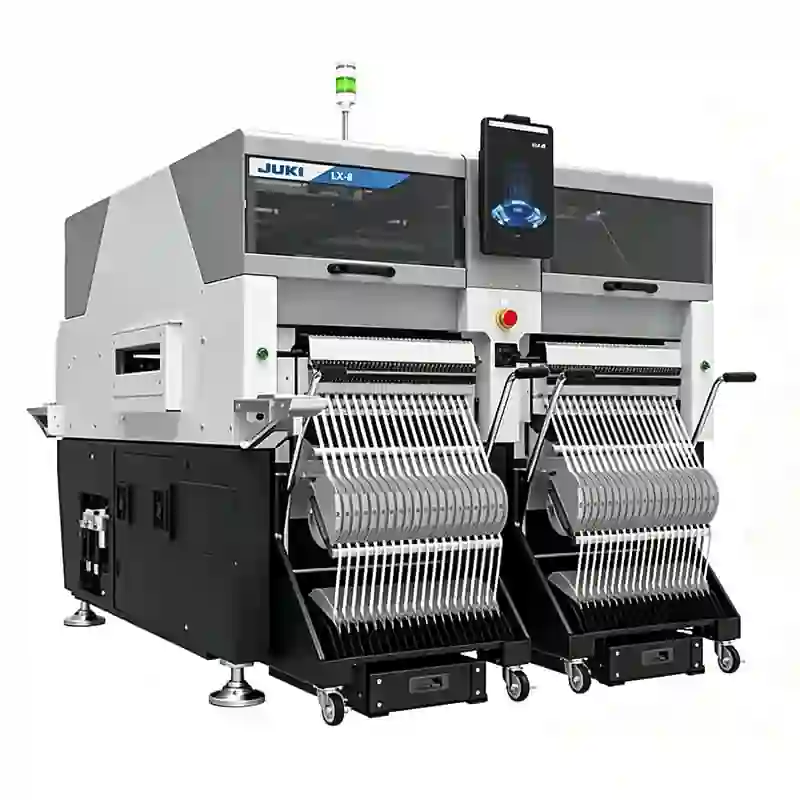

The JUKI LX-8 is an advanced, award-winning high-speed flexible modular mounter specifically designed for surface mount technology (SMT). With the ability to place electronic components onto printed circuit boards (PCBs), this machine redefines efficiency and precision in the electronics manufacturing industry.
Unmatched Speed and Productivity
Capable of achieving peak placement speeds of up to 105,000 components per hour (CPH), the JUKI LX-8 sets a benchmark for operational productivity. Its compact footprint ensures that you can maximize your production area without compromising on performance.
Reliable and Scalable Technology
Engineered for flexibility, the JUKI LX-8 is perfect for manufacturers looking to increase production speed while maintaining accuracy. Its modular design allows for seamless scalability, accommodating a wide range of production needs with ease.
Interchangeable Head Technology
- Takumi Head: Focuses on multi-part flexibility and adjustable height control matching component sizes.
- P20S Planet Head: Continuous suction rotary head built for extreme high-speed chip placement.
- Configurability: Users can mix and match dual heads (two Takumi heads, two P20S heads, or a hybrid combination) depending on production needs.
Specification
| Advanced Flexible Mounter LX-8 | ||||
| P20S×P20S | P20SxTakumi | TakumixTakumi | ||
| Board size | Minimum | 50×50mm | ||
| Single clamping | 410×400mm | |||
| Double clamping*¹ | 810×400mm*² | |||
| Component height | 3mm | 22mm | ||
| Component size | Minimum | 0201*¹ | 3015 | |
| Maximum | □5 ㎜ | □65 ㎜ /10 ㎜ ×90 ㎜ /50 ㎜ ×75 ㎜ | ||
| Placement speed (optimum) | 105,000CPH | 99,500CPH | 94,000CPH | |
| Placement accuracy | ±40μm(Cpk ≧1) | ±35μm (Cpk ≧1)*³ | ||
| Feeder capacity | Tape | Max. 136 | Max. 148 | Max. 160 |
| Tray*⁴ | _ | Max. 30 | Max. 60 | |
| Power | 3-phase AC200V (standard) AC200V ～ AC415V (when optional transformer is selected) | |||
| Apparent power | 2.49kVA | |||
| Operating air pressure | 0.5±0.05MPa | |||
| Air consumption (standard) | 50L/min(ANR) | |||
| Machine dimensions (WxDxH)*⁵ | 1,600 ㎜ ×1,924 ㎜ ×1,440 ㎜ | |||
| Mass (approximately) | 2,400kg or less | |||
*1 Please contact for detail
*2 Factory default
*3 For laser recognition
*4 For TR8SR
*5 D dimension does not include the front operation monitor. H dimension does not include signal tower.
