Description
High-Performance Design

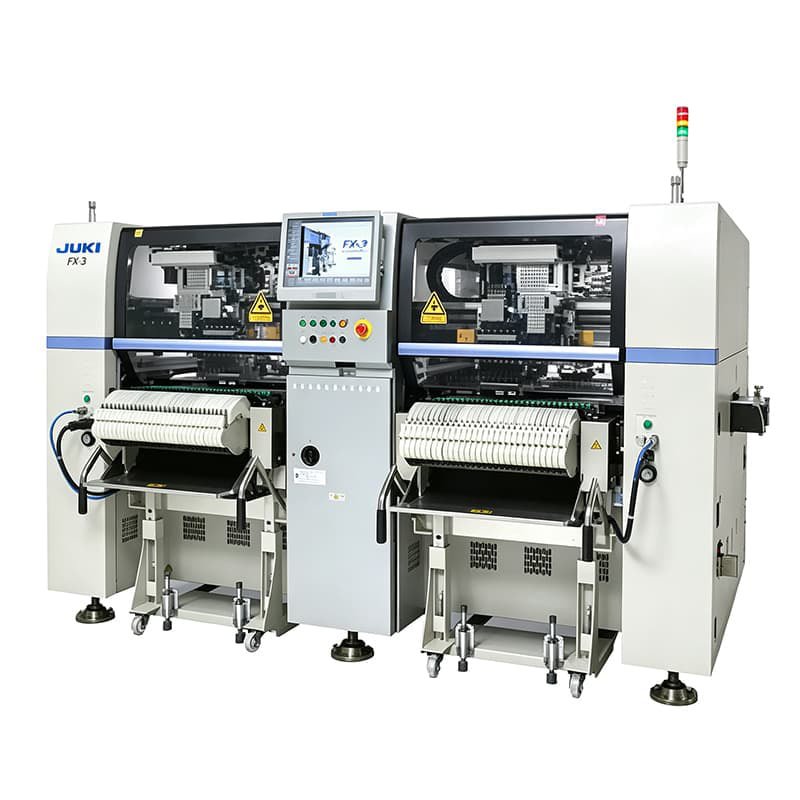

The FX-3 sets a new standard in surface-mount technology. With its 2 stations, 4 beams, 4 heads, and 24 nozzles, it excels in delivering unmatched throughput and reliability for high-speed component placement.
Independent Head Configuration
Each head is mounted on an independent beam, allowing simultaneous picking and placing of components. This innovative design ensures seamless operations and increased efficiency, even in complex assembly processes.
Exceptional Speed and Precision
The FX-3 employs an advanced XY drive system powered by linear servo motors. This cutting-edge technology delivers top-tier flexibility and precision, achieving an impressive 0.049 seconds per chip (74,000 CPH) and 60,000 CPH based on IPC9850 standards.
Designed for versatility and performance, the FX-3 is the perfect solution for businesses looking to optimize their electronic assembly operations.
Specifications
| Model name | High-speed Modular Mounter | High-speed Modular Mounter | |
| FX-3 | FX-1R(Conventional model kind) | ||
| Placement speed (chip) | Optimum | 0.049Sec./chip(74,000CPH) | 33,000CPH*2 （optimum condition） |
| IPC9850 | 60,000 CPH | 25,000 CPH | |
| Component size | 0402(01005) ～□33.5mm (or diagonal length up to 47mm) | 0603 (0201)～□20mm or 26.5×11mm*1 | |
| Placement accuracy | ±0.05 mm （cpk≧1） | ±0.05 mm | |
| Feeder inputs | Max. 120 on 8mm T/F | Max. 80 on 8mm T/F | |
| Board size | 410×360 mm（max） 50×50 mm（min） （L-Wide size : 510x360mm is optional） | 410×360 mm（max） 50×30 mm（min） | |
| Mass (approximately) | 3,280 kg | 2,000 kg | |
| Machine Dimensions | Width | 2,650 mm | 1,880 mm |
| Depth | 1,650 mm | 1,731 mm | |
| Hight | 1,530 mm | 1,490 mm | |
