Description
Advanced Reflow Technology for Precision

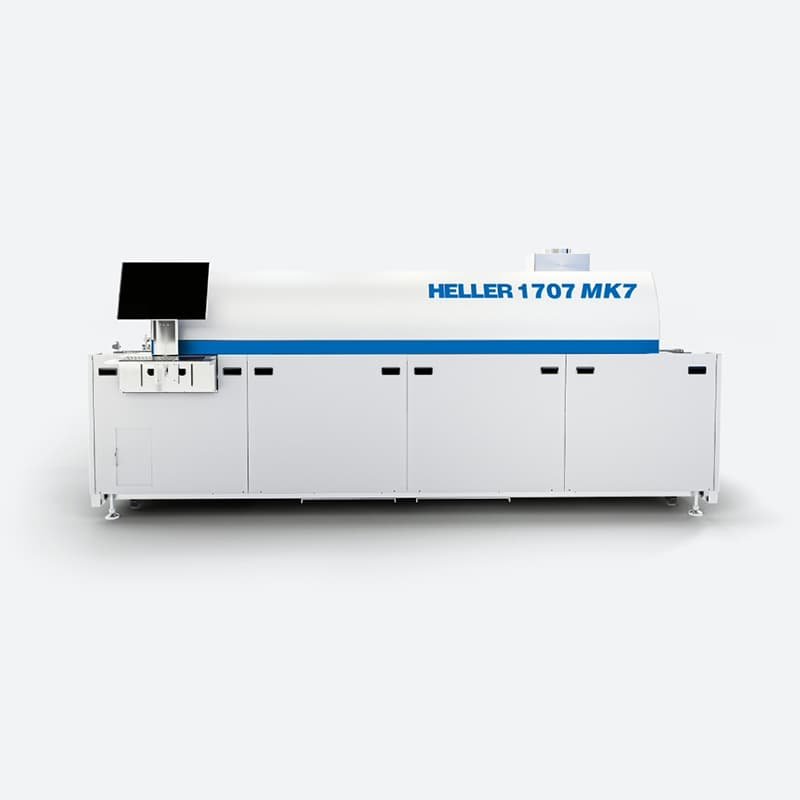

The ISO-certified Heller MK7 reflow oven redefines the standards of efficiency and innovation with its ground-breaking features, designed meticulously to cater to modern production demands. This highly customizable system integrates cutting-edge solutions, ensuring seamless operations and superior results every time.
Enhanced Maintenance and Energy Efficiency
Built with customer feedback in mind, the MK7 delivers reduced nitrogen consumption and extended maintenance intervals. Its low-height design enables a clear view across the production floor, simplifying operations while enhancing productivity. This combination of features makes it an excellent choice for demanding production environments.
Exceptional Flexibility for Tailored Solutions
The MK7 reflow oven offers unparalleled versatility with customizable options like nitrogen chamber air and vacuum settings. Designed for minimal temperature fluctuations, this advanced system ensures a uniform reflow process, making it an ideal tool for achieving consistent, high-quality results.
The ISO-certified Heller MK7 reflow oven is a pioneering reflow system with several ground breaking designs and incorporates all of the customer requests for lower Delta T on the board, reduced nitrogen consumption and extended product maintenance into a new low height package that makes it easy to see across the production floor. The MK7 is highly customizable with nitrogen chamber air and vacuum options.
Highlights:
Easy to maintain
Save 10-15% in energy loss
INDUSTRY 4.0 Compatible Reflow Oven
revoluntionary green flux management system that uses catalyst that produces no waste byproduct, and allows flux removal while reflow soldering oven is running and eliminates the risk of flux clogging.
low delta T on the board
Integrated CPK software at no charge
Specifications
| Oven Length (mm) | 3615 |
| Process Gas Options | Air, Nitrogen |
| Heated Zones | 7 |
| Heated Length (Convection/Total) | 1920 |
| Cool Zones | 1 |
| Max Working Temperature | Standard: 350°C (Option: 450°C) |
| Maximum PCB Width | 55.9cm (22”) (61cm Optional) |
| Cleanroom Option | Down to Class 1000 |
