Streamlined Performance for High-Volume SMT Assembly

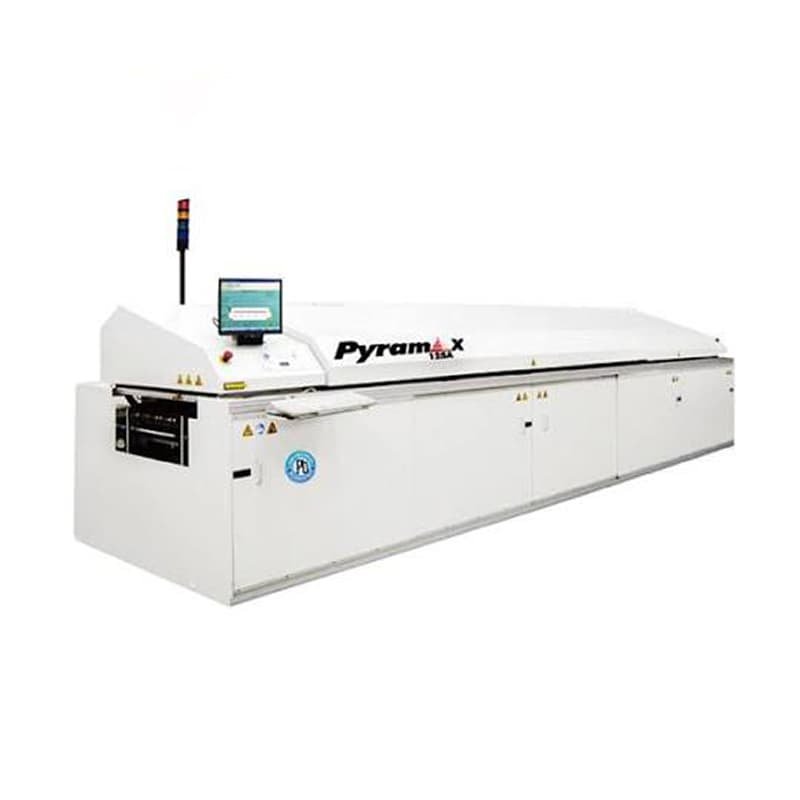

The BTU Pyramax 125A is your ultimate solution for precision and efficiency in printed circuit board assembly. Designed with cutting-edge technology, this 10-zone inline convection reflow oven guarantees consistent quality, even in high-volume production environments.
Key Features of the BTU Pyramax 125A
Engineered to meet the demands of advanced surface-mount technology (SMT), the Pyramax 125A offers unparalleled thermal uniformity across all zones. With its robust design and superior control system, this oven harmonizes performance and reliability, making it ideal for critical manufacturing processes.
Your Optimal Choice for Precision Manufacturing
Whether you’re scaling up production or require precision for intricate designs, the BTU Pyramax 125A provides unmatched efficiency for consistent results. Easily integrate this reflow oven into your production line to achieve superior outcomes in all your SMT applications.
BTU Pyramax 125A Key Specifications
- Heating Zones: 10 heated zones (top and bottom)
- Maximum Temperature: 350°C
- Total Length: ~5,844 mm
- Heating Length: 3,175 mm
- Cooling Length: ~1,219 mm
- Conveyor Compatibility: Supports rail and mesh belt configurations
Core Features
- Closed-Loop Convection Control: BTU’s proprietary thermal architecture delivers precise heating/cooling control and stable heat transfer across complex profiles.
- Lead-Free Optimization: Engineered to handle demanding lead-free soldering profiles with high process repeatability and low ΔT uniformity.
- WINCON Control System: Features an intuitive software interface with advanced data logging, profile management, and traceability integration.
