Description
Exceptional Performance for Precision Printing

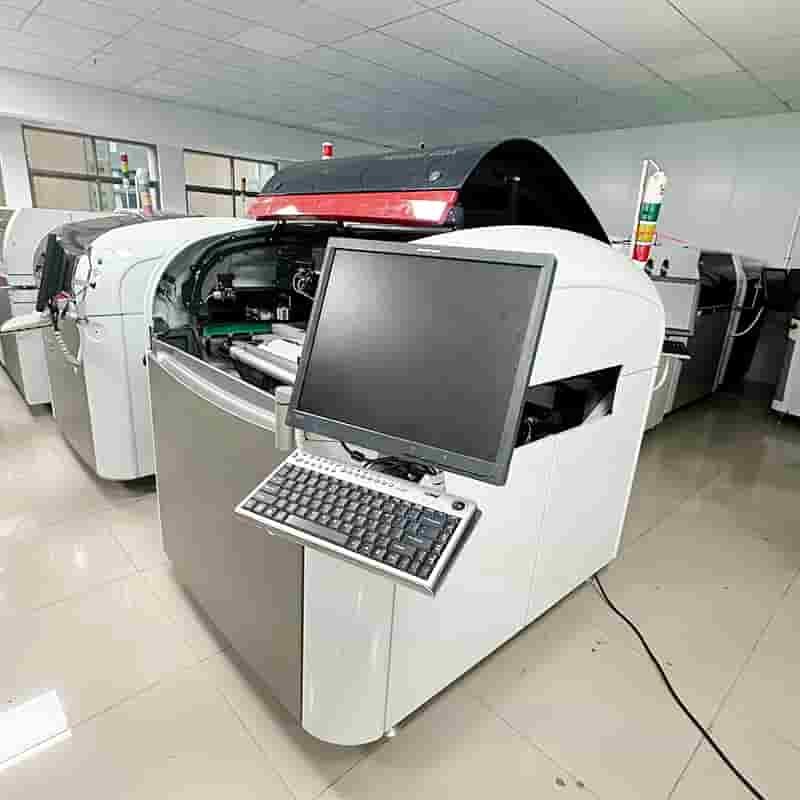

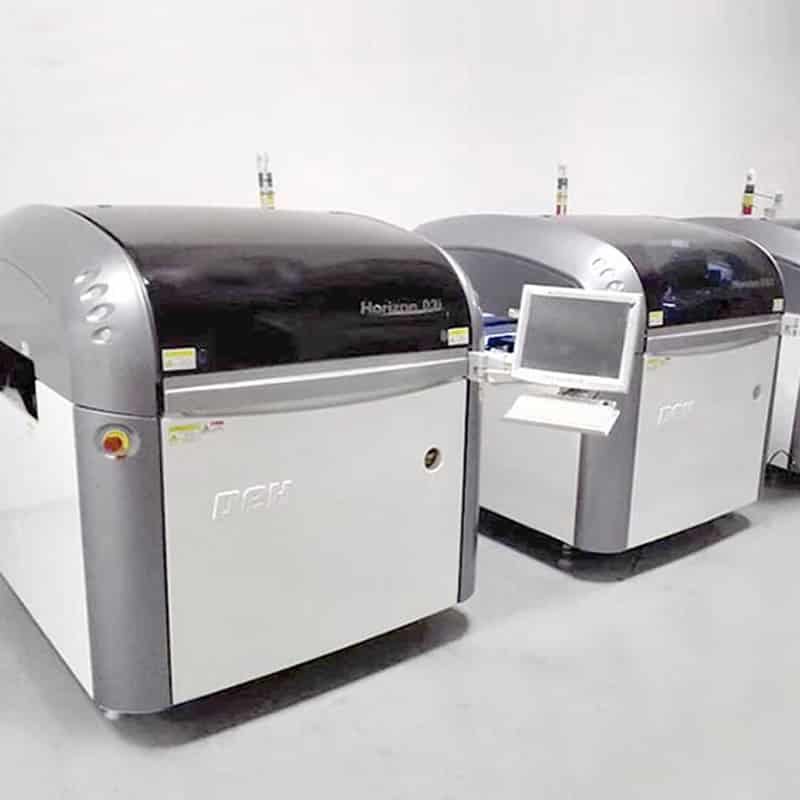

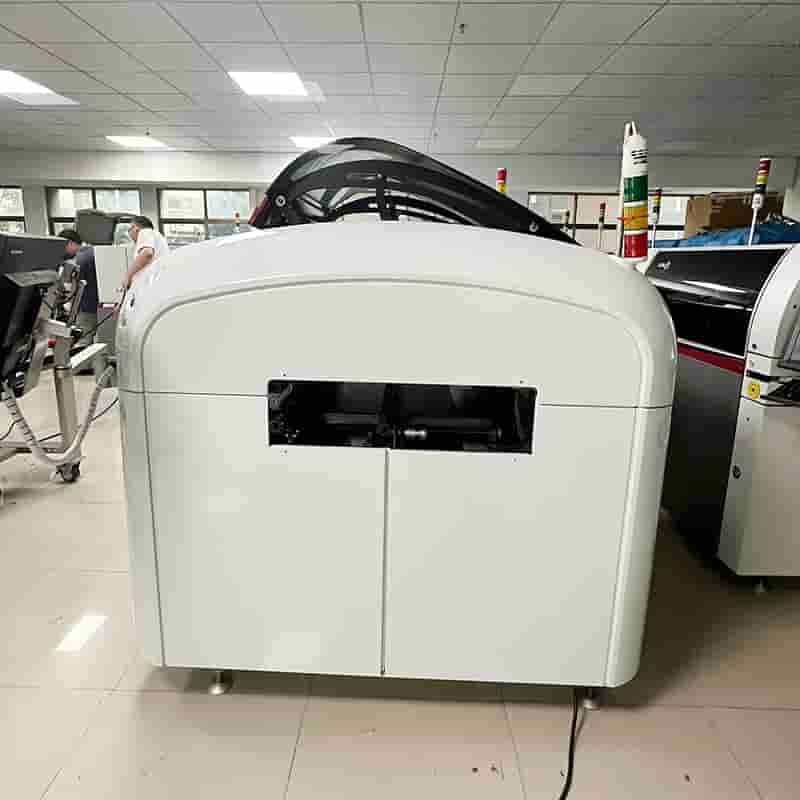

The DEK Horizon 03iX stands out as a high-precision, fully automatic SMT solder paste stencil printer designed to streamline your electronic manufacturing processes. This advanced machine ensures accuracy with every print, making it an invaluable asset for achieving flawless solder joints in circuit board assembly.
Advanced Features and Technology
Equipped with cutting-edge technology, the DEK Horizon 03iX delivers superior alignment, precise solder paste deposition, and unmatched reliability. Its automation capabilities make it an optimal choice for both high-volume production runs and intricate assembly projects, all while maintaining consistent quality.
A Proven Choice for Professionals
Recognized globally, the DEK Horizon 03iX redefines efficiency in SMT assembly. Whether you’re focusing on prototyping or mass production, this printer offers the precision and consistency needed to meet industry standards with ease.
DEK Horizon 03iX Key Specifications
- Alignment Accuracy: >2 Cpk @ ±12.5 µm (6 Sigma) machine capability
- Core Cycle Time: ~12 seconds
- Maximum Print Area: 510 mm (X) x 508.5 mm (Y)
- Substrate Thickness: 0.2 mm to 6 mm
- Vision System: HawkEye® 750 digital camera with multi-channel LED lighting
- Software Interface: DEK Instinctiv™ software running on Windows XP
Core Features
- Advanced Alignment: Utilizes high-resolution cameras to detect fiducial marks for precise registration.
- Under Stencil Cleaner: Programmable wipe, dry, and vacuum options to maintain stencil cleanliness.
- Squeegee Control: Software-controlled, motorized pressure mechanism for uniform paste deposition.
- Automation Ready: Features SMEMA compatibility for seamless integration into inline SMT production lines with pick-and-place machines and reflow ovens.
