Description

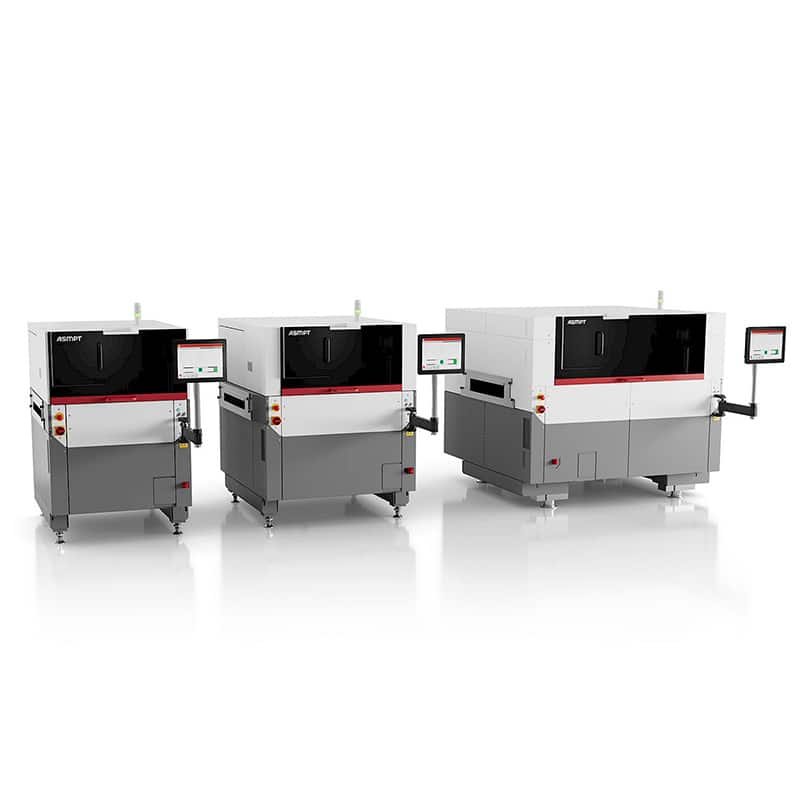

The DEK TQ Printer from ASMPT revolutionizes precision in solder paste printing for smart manufacturing facilities. Designed with cutting-edge technology, it empowers businesses to achieve unparalleled speed and accuracy in SMT stencil printing processes.
High-Speed Precision Printing
Engineered for excellence, the DEK TQ Printer offers precise stencil alignment and high-speed performance, ensuring optimal results even in the most demanding environments. Its advanced automated features streamline operations, saving valuable time and reducing production errors.
Smart Manufacturing Integration
Built for the future, this next-generation SMT stencil printer seamlessly integrates into smart factory setups. Its innovative design enhances production efficiency and supports Industry 4.0-ready environments for ultimate flexibility and scalability.
Why Choose the DEK TQ Printer?
Whether you’re scaling operations or maintaining tight tolerances, the DEK TQ Printer stands out as a reliable solution. Experience unmatched quality and performance that transforms solder paste printing into a smoother, more efficient process. Make every print flawless with ASMPT’s state-of-the-art technology.
Highlights:
- Maximum printing quality: New clamping process for off-belt printing, an innovative printhead and drive, and full-area pneumatic stencil clamping
- Maximum precision: Wet-print accuracy of up to ±17.0 microns @ 2 cpk Paste printing for 0201m components
- Maximum throughput: Core cycle time of 5 seconds (DEK TQ) and 6.5 seconds (DEK TQ L)
- Fast 3-stage transport: Linear drives, innovative clamping systems, off-belt printing, ASMPT NuMotion controller
- Up to 8 hours without assists: Understencil cleaning system with 22-meter fabric roll and 7-liter cleaning fluid supply, automatic paste management, and automatic Smart Pin Support
- Efficient programming: New instinctive software and offline programming with WORKS software
- Best floorspace performance: Footprint of only 1.3 square meters (DEK TQ) and 1.95 square meters (DEK TQ L)
- Back-to-back: The perfect solution for dual-conveyor lines
Specification:
| DEK TQ | DEK TQ L | |
| Maximum print area | 400 mm (X) × 400 mm (Y) (1-stage conveyor) | 600 mm (X) × 510 mm (Y) (Single stage conveyor) 600 mm (X) × 400 mm (Y) (All Purpose Clamping) |
| Machine dimensions | 1000 x 1300 x 1600 mm (L x W x H) | 1300 x 1500 x 1600 mm (L x W x H) |
Option:
- Automatic Smart Pin Support: DEK TQ 30-pin magazine or DEK TQ L up to 60-pin magazine (4-mm and 12-mm pins)
- DEK Automatic Paste Dispenser: Automatic paste application with paste height control
- Dual Access Cover: Easy paste cartridge/pot exchange without printer and line stop
- DEK All Purpose Clamping: Flexible and totally software-controlled vertical and lateral clamping
- High Flow Vacuum: Special large-area vacuum system incl. flexible tooling box – ideal for carriers
- Closed-loop link to SPI systems: Expanded solder paste control with ProDEK DEK TQ printer platform
