Description
Experience the Ultimate in Surface Mounting

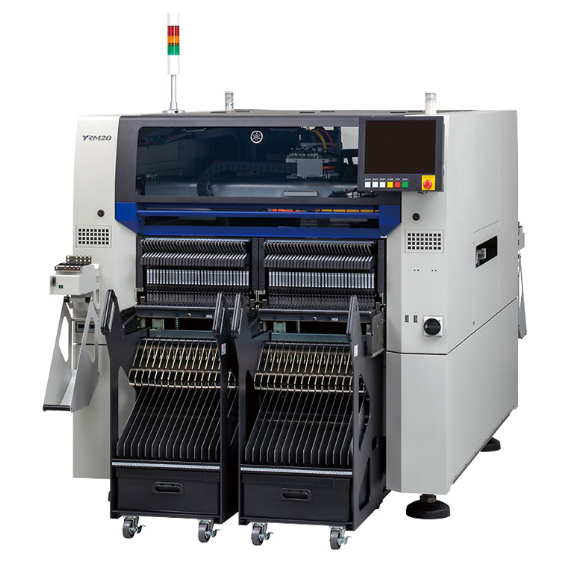

The 1-head solution has reached its pinnacle with this innovative surface mounter. Designed to deliver extraordinary results, this all-around system seamlessly combines precision, speed, and flexibility for modern manufacturing needs.
Unparalleled Productivity
Equipped with a revolutionary super high-speed rotary RM head, this system achieves an astonishing placement speed of 115,000 components per hour (CPH). It sets a new standard in high-speed operations, reducing production time without compromising on quality.
Flexibility for Every Task
Beyond raw power, this surface mounter adapts to diverse manufacturing requirements, ensuring it fits into any production line effortlessly. Whether it’s for high-volume runs or intricate assemblies, this machine is your ultimate partner in efficiency.
The 1 head solution has reached an ultimate stage. An all-around surface mounter delivering both overwhelming productivity and flexibility!
Super high-speed rotary RM head achieves 115,000CPH!
Rotary head boosts component mountability of tiny components. This maintains high speed production since head replacements are no longer needed. This is technology that helps carry on the 1 head solution concept. This head can handle components ranging from super-tiny 0201mm components on up to medium-sized odd-shaped components of 12 x 12mm dimensions with heights of 6.5mm
ZSR feeder
Drastically improved component transfer speed. The super high-speed RM head component pickup is supported, achieving high productivity.
Auto loading feeder
A simple task of cutting and inserting a tape reduces the load in the component supply work. Setting two reels makes it possible to level off the component supply timing, minimizing the risk of line stoppage due to failure of component supply.
Specifications
| Model | YRM20 | ||
| Super high-speed rotary RM head | High-speed general-purpose in-line HM head | Odd-shaped components in-line FM (flexible-multi) head | |
| Nozzles (per 1 head unit) | 18 | 10 | 5 |
| Applicable components | 0201mm to W12 x L12mm, Height 6.5mm or less | 0201mm to W55 x L100mm, Height 15mm or less | 03015mm to W55 x L100mm, Height 30mm or less |
| Mounting capability (high-production mode) | 115,000CPH (under optimum conditions) | 98,000CPH (under optimum conditions) | 35,000CPH (under optimum conditions) |
| Mounting accuracy (high-accuracy mode) | ±0.025mm Cpk≧1.0 (under optimum conditions) | ±0.035mm Cpk≧1.0 (under optimum conditions) | |
| Number of component types | Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder) Trays: 60 types (maximum when equipped with eATS30 x 2) | ||
| PCB dimensions | Dual-stage specifications 1-PCB conveyance : L50 x W50mm to L810 x W510mm 2-PCB conveyance : L50 x W50mm to L810 x W510mm | ||
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | ||
| Air supply source | 0.45MPa or more, in clean, dry state | ||
| External dimension (excluding projections) | L1,374 x W1,948 x H1,445mm | ||
| Weight | Approx. 2,250kg (Main unit only) | ||
