Yamaha YRM series | YRM10 | Compact High-Speed Modular

Description

Advanced Compact SMT Solution

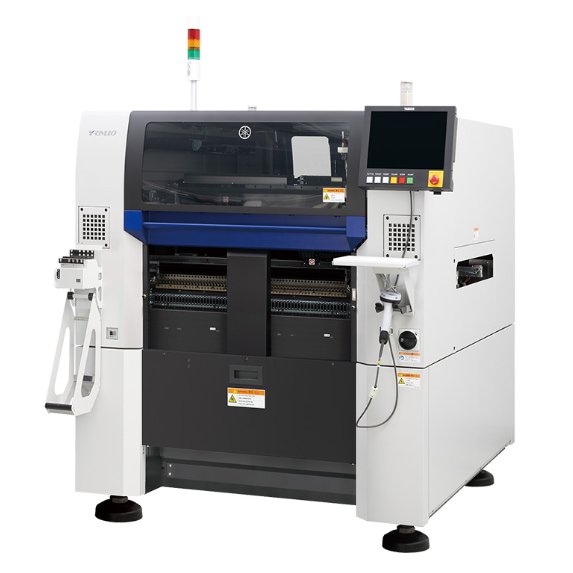

The Yamaha YRM10 is the ultimate modular pick-and-place machine designed to enhance your production line. Released in March 2024 as the successor to the renowned YSM10, the YRM10 is engineered to combine precision, speed, and flexibility in a compact design.

Exceptional Speed and Precision

Featuring a 1-beam, 1-head configuration, the Yamaha YRM10 achieves lightning-fast speeds of up to 52,000 components per hour (CPH). With advanced placement accuracy of ±35µm, it ensures consistent quality throughout your manufacturing processes, even at high speeds.

Versatile Technology for Modern Needs

The in-line multi-purpose head is crafted to handle a diverse range of components and production requirements, making it an indispensable choice for manufacturers looking to improve efficiency while maintaining flexibility.

Key Specifications

• Placement Speed: 52,000 CPH (optimum conditions)
• Placement Accuracy: ±0.035 mm (\(C_{pk} \ge 1.0\))
• Component Range: 0201 micro-chips up to 100 x 55 mm (heights up to 15 mm)
• PCB Dimensions: 50 x 50 mm to 510 x 460 mm
• Max Feeders: Up to 96 reel types (8 mm tape equivalent)
• Dimensions: 1,254 x 1,440 x 1,445 mm (approx. 1,230 kg).

Core Features

• 1-Head Solution: Uses 10 in-line spindles and a scan camera to handle tiny chips and larger parts without swapping heads.
• Quality Control: Built-in side-view camera for posture checks, optional coplanarity checker for warped leads, and side lighting for BGA inspection.
• Shared Platform: Incorporates advanced control and software frameworks from Yamaha’s high-end YRM series.
