Streamlined PCB Management for SMT & DIP Lines

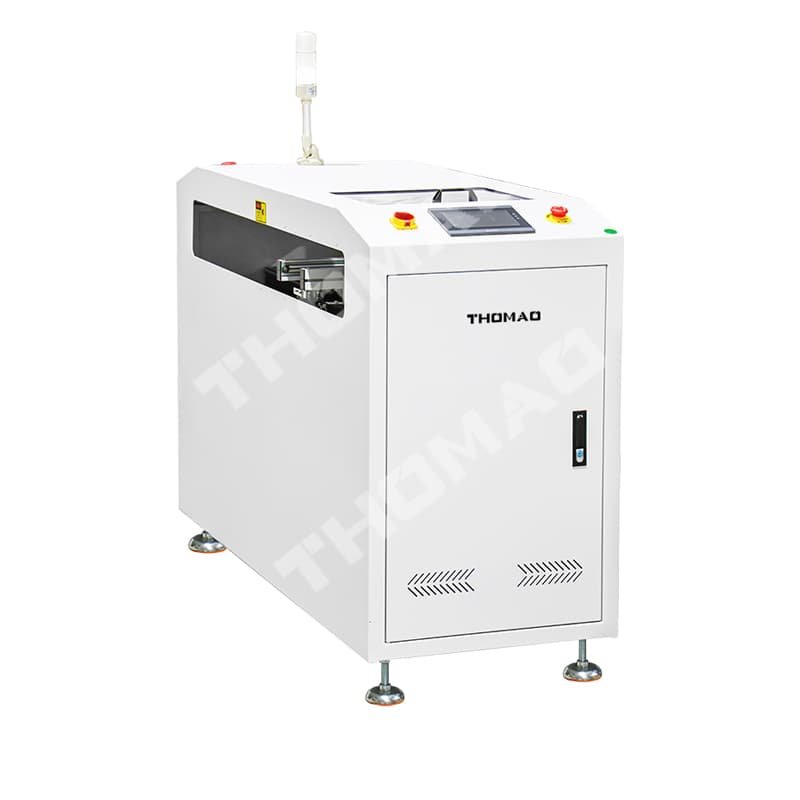

The SMT PCB shuttle conveyor offers a sophisticated approach to handling printed circuit boards during production. It is specially designed to smooth transitions within SMT and DIP assembly lines, ensuring precision and efficiency.
Key Features for Enhanced Performance
Path Redirection: Equipped with a dynamic shuttle mechanism, the conveyor glides forward, backward, or sideways on precision rails, seamlessly routing PCBs to the correct channels.
SMEMA Compatibility: Easy integration with other assembly equipment like printers, pick-and-place machines, and reflow ovens guarantees workflow continuity.
PLC & Touch Screen Control: Automated systems provide intuitive, programmable control for fast adjustments and recipe changes.
Reliable and Durable Design
Built with stable aluminum framing and advanced ball screw technology, this shuttle conveyor ensures vibration-free operation. Precision handling mechanisms prevent mishandling while maintaining speed and accuracy, making it an indispensable tool for high-speed production lines.
| Parameter | ||
| Description | This unit is used to redirect PCBs flow intodifferent channels in a production line | |
| Cycle time | Depends on traversing distance | |
| Belt type | Rround belt or oblate belt | |
| Powersupply | AC1P110V/220V | |
| Power | Max 250VA | |
| Transport height | 900+20mm(Or customized) | |
| Transport direction | From left to right or right to left | |
| Specification | ||
| Model | PT-150M-FATN | PT-450L-2ATN |
| Dimension(L*W*H MM) | 500*W*1050 | 600*4500*1050 |
| PCB size(MM) | 50*50-450*350 | 600*4500*1050 |
| Weight(KG) | 140 | 280 |
| Machine width | (1500mm)Depends ontraversing distance | (4500mm)Depends ontraversing distance |
