Optimize Your SMT PCB Assembly Line

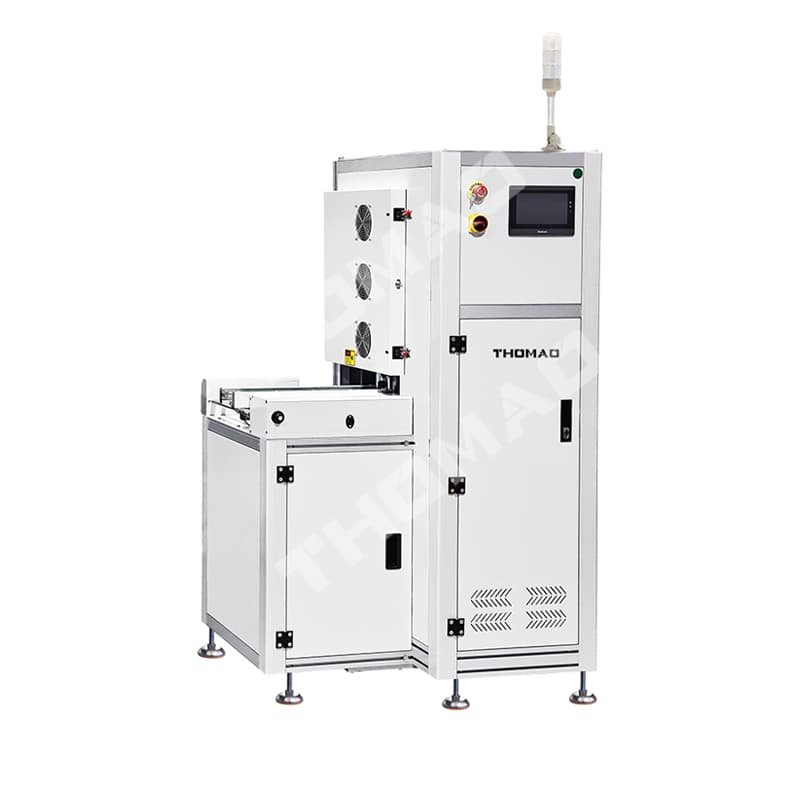

The multifunction vertical buffer is the ultimate solution for streamlining your SMT (Surface Mount Technology) PCB production process. Designed to store, cool, and sequence printed circuit boards vertically, it provides seamless integration between upstream and downstream equipment. With its compact vertical layout, this machine not only saves valuable factory floor space but also absorbs pace mismatches efficiently.
Core Features & Technical Advantages
Equipped with cutting-edge features, this vertical buffer comes with adjustable slots accommodating up to 25 PCBs, allowing seamless handling of varying board sizes. Rapid indexing technology ensures a swift exchange time averaging just 10 seconds per board, minimizing downtime. Operators can alternate between FIFO (First-In, First-Out), LIFO (Last-In, First-Out), and pass-through modes for maximum flexibility.
Built for Durability & Seamless Integration
This machine features durable roller conveyance systems, avoiding traditional rubber belts to reduce maintenance and wear over time. It is fully compatible with SMEMA standards, making it easy to integrate into existing production lines. Sophisticated lead-screw width adjustments allow for quick adaptations to different product requirements, taking your assembly efficiency to the next level.
| Technical Parameters | ||
| Description | This unit is used as a buffer between SMTmachine | |
| Cycle time | Approx.10 seconds | |
| Maximun PCBsmagazine | 25pcs or specify | |
| Powersupply | AC1P110V/220V | |
| Power | Max 250VA | |
| Transport height | 900+20mm(Or customized) | |
| Transport direction | From left to right or right to left | |
| Specification | ||
| Model | BD-L-TN | BD-XL-TN |
| Dimension(L*W*H MM) | 1000*790*1640 | 1200*900*1640 |
| PCB size(MM) | 50*50-445*350 | 50*50-530*460 |
| Weight(KG) | 190 | 240 |
