Description
High-End Solution for Smart Manufacturing

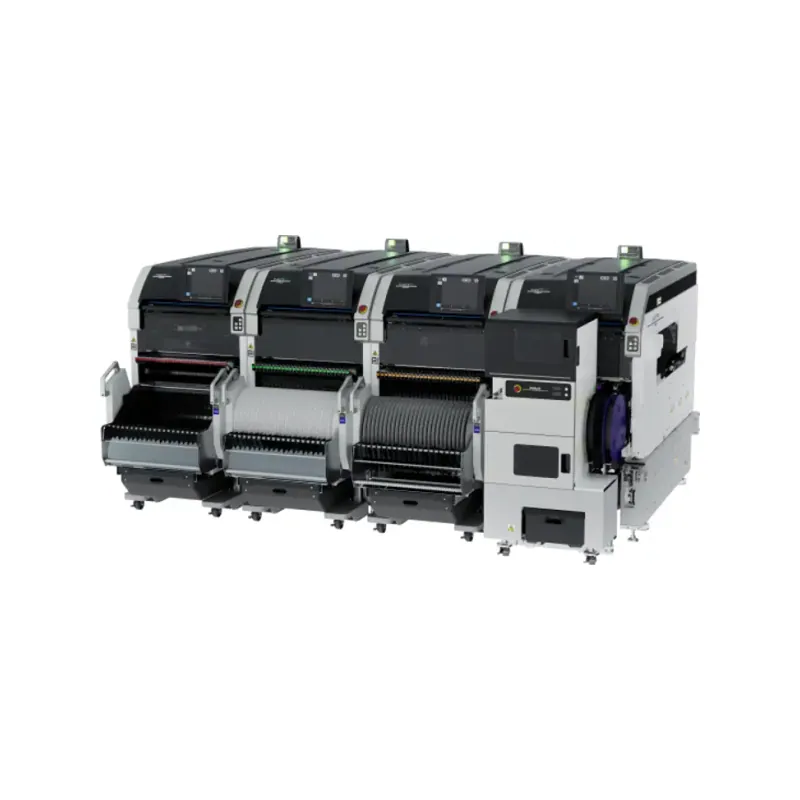

The FUJI NXTR-S is the ultimate modular pick-and-place machine engineered to meet the needs of advanced smart factories. With cutting-edge technology, it simplifies high-density and high-quality electronic circuit board assembly, ensuring flawless results every time.
Unmatched Precision and Performance
Designed for Surface-Mount Technology (SMT), the FUJI NXTR-S offers exceptional accuracy and efficiency. Its modular design allows for seamless scalability and adaptability, catering perfectly to diverse production demands.
Optimized for Smart Factories
Stay ahead in the industry with a machine that’s tailor-made for smart factory environments. The FUJI NXTR-S streamlines operations, enhances productivity, and sets a new standard for high-quality electronic assembly in today’s competitive market.
Highlights:
- NXTR S model (2021): FUJI Smart Factory Platform with 1R module (one module base) and 2R module (two module base).
- RH20 head achieves 46,000 cph (50,000 cph in productivity priority mode); ±0.025 mm Cpk ≥ 1.00.
- Largest panel handling in class: 48 × 48 to 750 × 610 mm (1R module, single conveyor).
- Non-stop production with LCU functions: collects logs automatically, saves all images, responds to network issues, self-diagnosis and remote control.
- Wide variety of supply units: MFU-52 / MFU-47 multi feeders and Tray unit-RM including smallest parts up to large odd-form parts.
- Easy maintenance: module opening gives access from both sides for head exchange and maintenance in a comfortable posture.
- High-speed flux transfer and automatic waste tape collection reduce operator workload.
Specification:
| Machine | FUJI NXTR (S model) — 1R module / 2R module |
| Panel size (L × W) | 1R: 48 × 48 to 750 × 610 mm (single conveyor); 2R: 48 × 48 to 370 × 610 mm; Double conveyor single conveyance: 750 × 510 mm (1R) / 370 × 510 mm (2R); Dual conveyance: 750 × 280 mm (1R) / 370 × 280 mm (2R) |
| Heads | RH20 / RH08 / RH02 |
| Throughput | 1R: RH20 46,000 cph (productivity priority mode 50,000 cph), RH08 24,000 cph; 2R: RH02 8,000 cph |
| Placing accuracy | ±0.025 mm Cpk ≥ 1.00 (under optimum Fuji conditions) |
| Weight | 1R: 610 kg; 2R: 790 kg |
| Base | 1R: one module base; 2R: two module base |
| Air consumption | 1R: 50 L/min (ANR); 2R: 100 L/min (ANR) |
| Machine weight | 1R: 430 kg; 2R: 800 kg |
| External dimensions | 1R module width 790 mm; 2R module 1,585 mm; machine L 969 mm × W 1,740 mm × H 1,480 mm (module change unit incl.) |
| Power / Air | 3-phase AC 200 to 230 V ±10 V (50/60 Hz) / 0.4 MPa |
Option:
- RH20 / RH08 / RH02 heads (nozzles φ0.2 to φ20.0, wide range S/M/L).
- MFU-52 / MFU-47 multi feeders; Tray unit-RM.
- LCU (Line Control Unit) for non-stop production; waste tape collection unit.
- Dip units (rotary-type, glue model, high-yield model); reject parts conveyors.
- Nexim line software (ERP / MES integration, FUJI Smart Factory).
