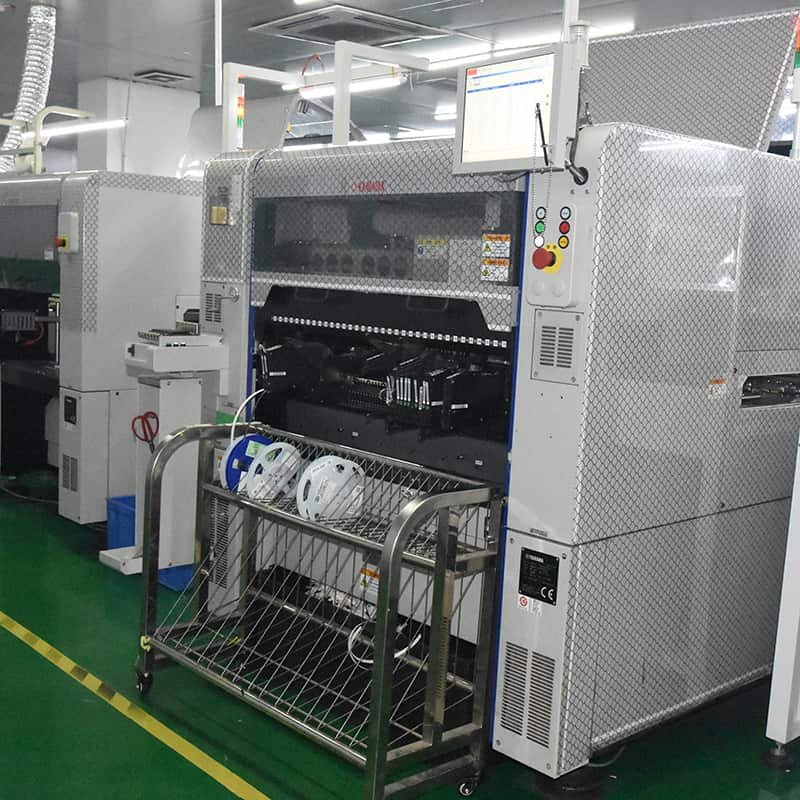

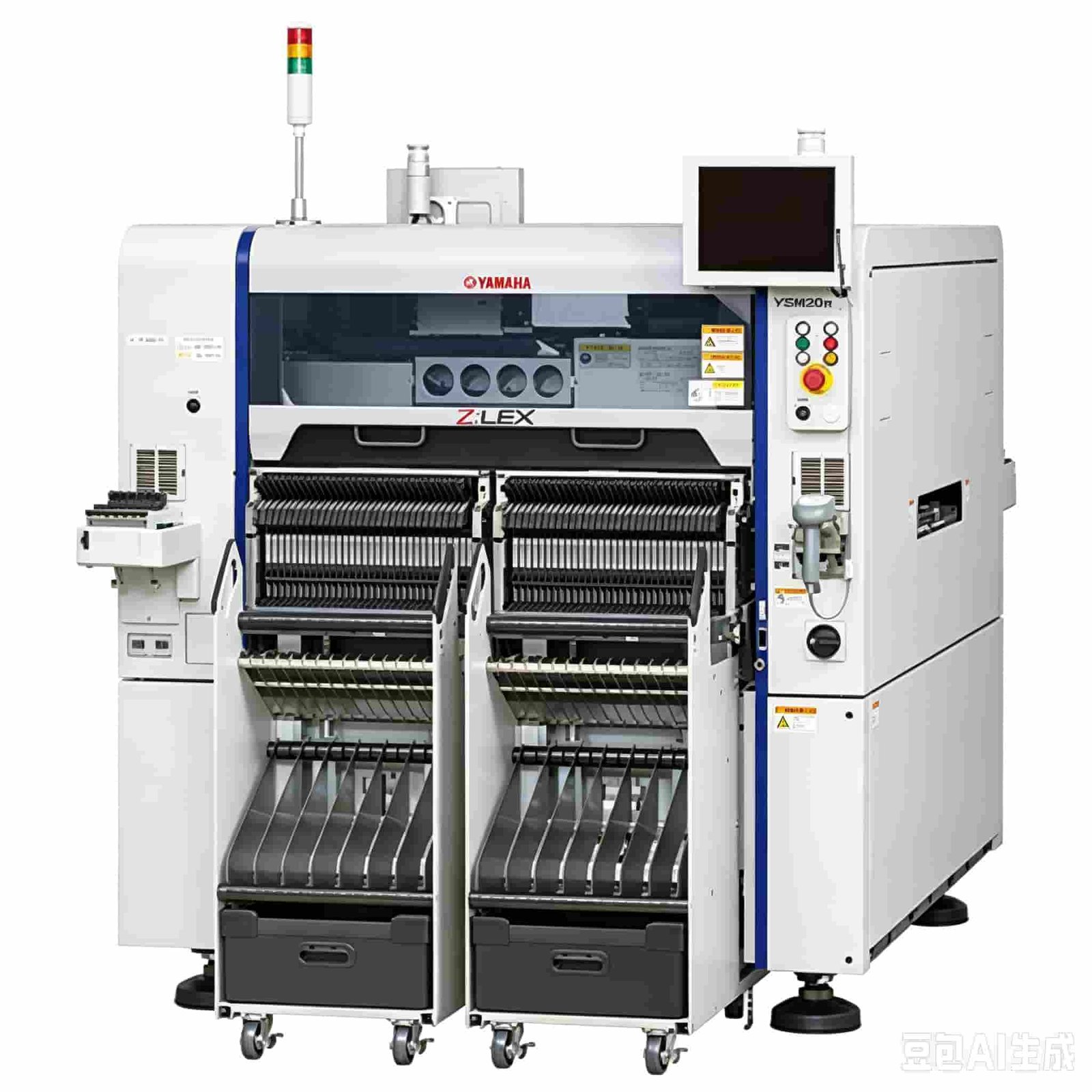

Yamaha YSM20R | SMT Pick and Place Machine For SMT

Description

Achieve Outstanding Performance

The Yamaha YSM20R is a state-of-the-art, modular surface mount technology (SMT) pick-and-place machine, designed to meet the growing demands of high-speed electronic manufacturing. Whether you’re scaling your production line or seeking efficiency, the YSM20R ensures top-notch performance every time.

Unparalleled Speed and Efficiency

Capable of reaching an impressive placement speed of up to 95,000 components per hour (CPH), the YSM20R sets a new standard in SMT technology. Equipped with dual beams and dual heads, it offers a 5% speed improvement over its predecessor, the YSM20 model, making it an invaluable asset for fast-paced production environments.

Flexibility and Precision Combined

The Yamaha YSM20R isn’t just about speed—it’s about precision and adaptability. Its modular design ensures versatility, enabling seamless integration into a variety of production setups. From small-scale operations to large manufacturing lines, this pick-and-place machine is built to excel in every scenario.

Key Technical Specifications

• Max Mounting Speed: 95,000 CPH
• Placement Accuracy: ±0.035 mm (±0.025 mm high precision), Cpk ≥ 1.0
• Component Size Range: Tiny 0201 mm chips up to large 55 × 100 mm parts
• Max Component Height: Up to 15 mm (HM head) or 28 mm (FM head)
• Maximum Feeder Types: Up to 140 station lanes (8 mm tape feeder format)
• Applicable Board Size: Range from 50 × 50 mm up to 810 × 490 mm (monorail configuration).

Core Features

• 1-Head Solution: Eliminates head exchanges while adapting seamlessly to tiny chips and large multi-purpose components.
• Wide-Scan Camera: Employs advanced flying recognition and side lighting for fast recognition of ball grid arrays (BGA) and chip scale packages (CSP).
• Nonstop Options: Supports Auto Loading Feeders (ALF) and Auto Tray Sequencers (ATS) to allow reel and tray changes without halting the production line.
