Description
Efficient 2D AOI Solution

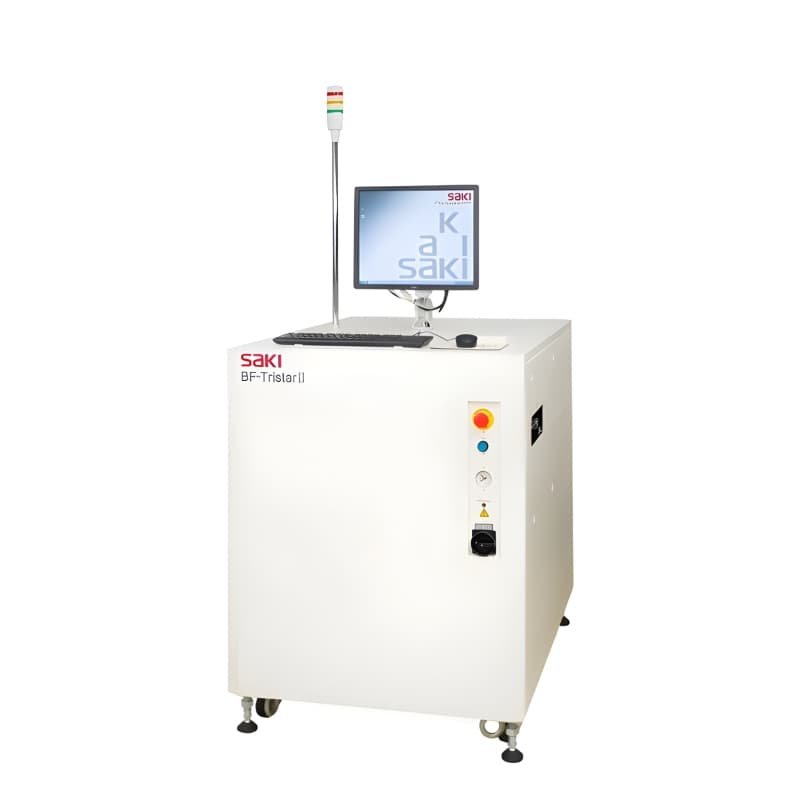

The Saki BF-Tristar II is an advanced in-line 2D Automated Optical Inspection (AOI) system that redefines inspection efficiency for SMT (Surface Mount Technology) production lines. Its innovative design allows for seamless PCB inspection, optimizing throughput without compromising accuracy.
Dual-Sided Inspection in One Pass
Engineered to maximize productivity, this AOI system offers simultaneous inspection of both sides of a printed circuit board in a single operation. This not only reduces inspection time but bolsters quality control by ensuring thorough analysis of each PCB.
Ultimate Performance for PCB Inspection
The Saki BF-Tristar II is a reliable and indispensable tool for modern manufacturing environments. Perfect for tackling the demands of complex SMT production lines, it consistently delivers high-quality results.
Key Specifications
- Resolution: 10 µm
- Max PCB Size: M-size boards (250 mm × 330 mm)
- Inspection Speed: Scans M-size boards (both sides simultaneously) in less than 25 seconds (or about 8 seconds for image scanning alone, excluding transfer time)
- Component Capability: Accurate inspection down to 01005 (0402 metric) chips
- Optical System: Telecentric lens with Line Scan Technology and fully coaxial vertical/overhead illumination
- Lighting Types: High-intensity LED configurations (such as top, side, and low lighting)
- System Architecture: Master-Slave PC System for parallel image processing across multiple cameras and PCs.
