Optimize Your SMT Manufacturing Process

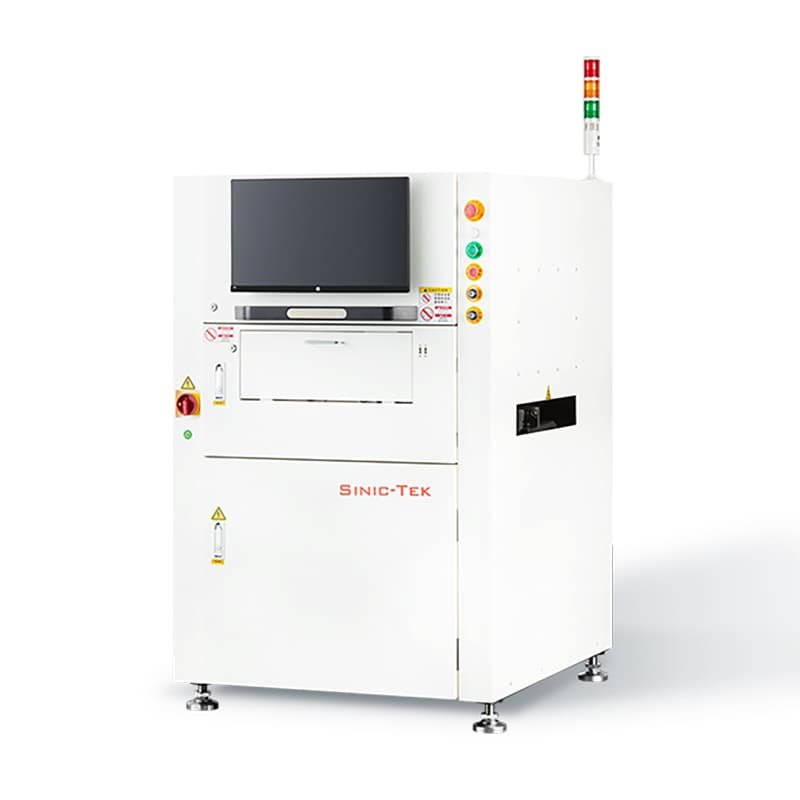

The Sinictek S8080 is a cutting-edge online high-speed 3D solder paste inspection (SPI) system, specially designed to enhance quality control in surface mount technology (SMT) manufacturing lines. With its precision, speed, and reliability, it ensures consistent solder paste application, improving production efficiency and reducing errors.
Advanced 3D Inspection Technology
Equipped with advanced 3D imaging capabilities, the Sinictek S8080 delivers accurate measurements of solder paste volume, area, and height. This high-resolution inspection system helps detect defects early, ensuring optimal manufacturing performance and superior end-product quality.
Seamless Integration for Maximum Efficiency
The Sinictek S8080 is designed for easy integration into existing SMT production lines. Its user-friendly interface and automated inline operation make it simple to install and operate, minimizing setup time while delivering consistent and reliable results.
Key Specifications & Features
- Measurement Principle: Uses 3D white light Programmable Spatial Light Modulation (PSLM) and Phase Measurement Profilometry (PMP / moire fringe technology).
- Core Technology: Features patented RGB Tune functionality (capturing Red, Green, and Blue images with special filter algorithms) to minimize false alarms on solder bridge detections.
- Application: Inline placement on SMT production lines prior to the mounter to inspect solder paste quality (volume, area, height, offset).
- Build & Size: Vertical floor-standing unit with robust industrial dimensions and weight specs (approx. 730 kg for standard frames).
