Description
Efficient Performance for Your Production Needs

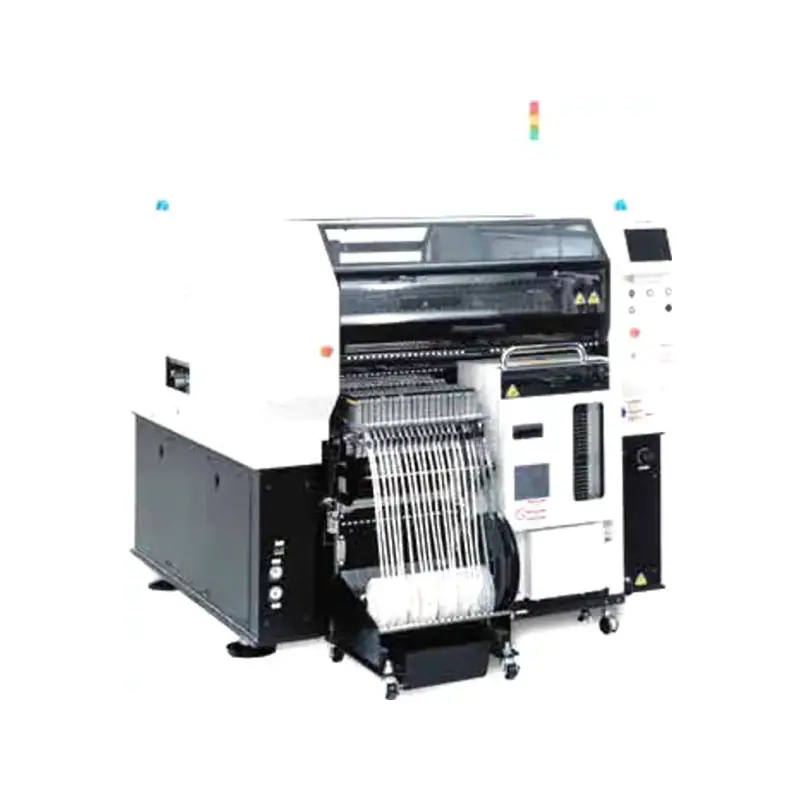

The Panasonic VM102 is a cutting-edge modular SMT pick-and-place machine, designed to meet the demands of high-mix, low-volume, and mid-sized board production. Its compact build and intelligent features ensure seamless integration into your manufacturing processes while delivering unparalleled efficiency.
Compact and Flexible Design
Optimized for versatility, the Panasonic VM102’s compact structure accommodates a diverse range of applications. Whether your production needs vary frequently or involve mid-sized boards, this machine adapts effortlessly, ensuring precision and reliability in every operation.
Engineered by Panasonic Connect for Excellence
Backed by the trusted engineering of Panasonic Connect, the VM102 combines innovation and durability. It’s an ideal choice for manufacturers seeking high performance without compromising on space and operational flexibility.
Highlights:
- VM series model with dual-side supply units for higher component capacity (max. 160 tape components).
- 14-nozzle head achieves 32,100 cph (0.112 s/chip) — high throughput in a compact body (1,515 mm wide).
- Lightweight 16-nozzle head V2 (42,000 cph), 8-nozzle head (22,500 cph) and 4-nozzle head (8,200 cph) selectable.
- Placement accuracy up to ±30 µm/chip with high-speed stable production.
- Handles components up to L 150 × W 25 × T 28 mm (14-nozzle head) for wide coverage.
- Common VM platform: efficient multi-product PCB production with common sequence.
Specification
| Model ID / Model No. | VM102 / NM-EJM4E |
| PCB dimensions | L 50 × W 50 mm to L 330 × W 250 mm (single-lane) |
| Max. speed (per head) | Lightweight 16-nozzle V2: 42,000 cph (0.086 s/chip); Lightweight 8-nozzle: 22,500 cph; 4-nozzle: 8,200 cph (0.439 s/chip); 14-nozzle: 32,100 cph (0.112 s/chip), 10,500 cph (0.343 s/QFP) |
| Placement accuracy (Cpk ≥ 1) | 16nz V2 / 8nz: ±30 µm/chip; 4nz: ±30 µm/QFP; 14nz: ±40 µm/chip, ±30 µm/QFP (□12 mm or more), ±50 µm/QFP (under □12 mm) |
| Component dimensions | 0402 chip to L 6 × 6 × 3 mm (16nz V2); 0402 to L 45 × 45 × 12 or L 100 × 40 × 12 (8nz); 0603 to L 120 × 90 × 30 or L 150 × 25 × 30 (4nz); 0402* to L 120 × 90 × 28 or L 150 × 25 × 28 (14nz) |
| Component supply | Taping: max. 160 (4/8 mm tape, double feeder); Stick: max. 40; Tray: max. 20 |
| Electric source | 3-phase AC 200–480 V |
| Pneumatic source | 0.5–0.8 MPa, 200 L/min (A.N.R.) |
| Dimensions / Mass | W 1,515 × D 2,070 × H 1,500 mm / 1,910 kg (front: fixed supply unit plus tray, rear: fixed supply unit without cutting unit) |
Option:
- 14-nozzle head (high-speed chip placement).
- Lightweight 16-nozzle head V2 / 8-nozzle head / 4-nozzle head.
- Fixed supply unit (front) plus tray feeder.
- Cutting unit (rear supply unit).
