Description

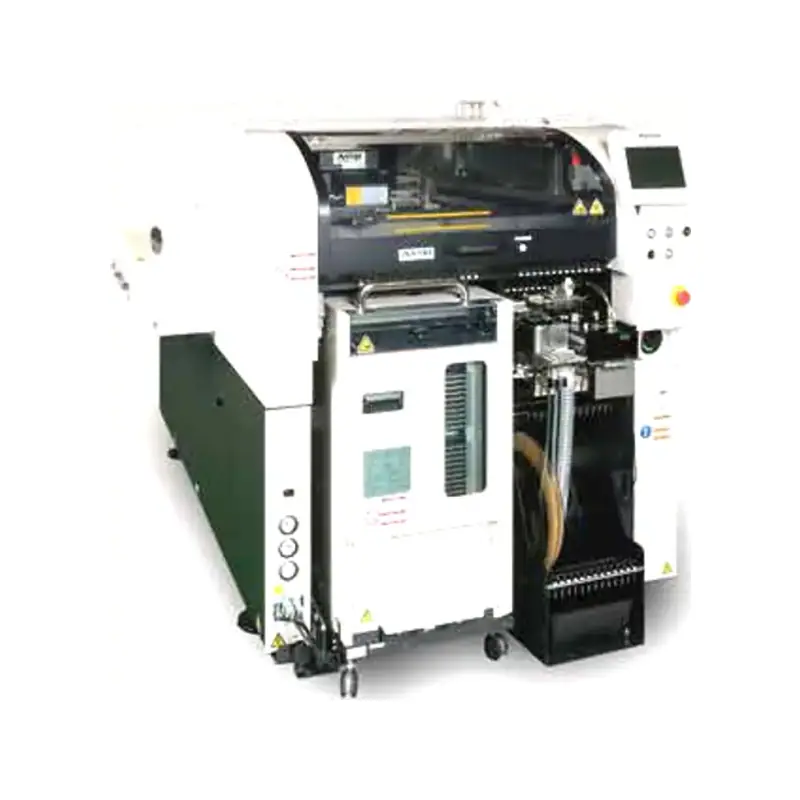

The Panasonic NPM-TT2 Twin Tray Assembly Platform redefines efficiency and precision in surface-mount technology (SMT) lines. Designed by Panasonic Connect, this cutting-edge modular pick-and-place machine specializes in handling tray-supplied and odd-form components, making it an essential asset for high-performance production environments.
Advanced Modular Design
Engineered for versatility, the NPM-TT2 boasts a modular structure that caters to dynamic manufacturing needs. It supports various configurations, ensuring seamless integration into existing SMT processes and enabling optimization of production lines.
Precision Component Handling
The NPM-TT2 excels in managing odd-form components and tray-supplied parts, offering unparalleled placement accuracy and reducing operational downtime. Its intelligent design ensures reliability even with the most complex assembly requirements.
Unmatched Efficiency
Whether you’re scaling up production or tackling challenging designs, the Panasonic NPM-TT2 is built to streamline workflows and maximize throughput. It is a perfect fusion of innovation and reliability for modern SMT lines.
Highlights:
- Tray-placement module for mid-/large-sized and odd-shaped components with fully independent placement on front and rear lanes.
- Direct connectivity with NPM-D3/W2 enables high area productivity and versatile line configurations.
- 3-nozzle head V2 supports max. placement load of 100 N for large/odd-form components.
- Multi Recognition Camera: faster recognition including vertical inspection of parts for high-speed stable mounting of odd-shaped components.
- Alternate and independent mounting support: optimum mounting method selectable per production PCB; 0 s exchange in dual-lane mode.
- Support Pin Automatic Change (option) enables non-stop changeover.
Specification
| Model ID / Model No. | NPM-TT2 / NM-EJM1E |
| PCB size (PC size) | Single-lane: L 510 × W 590 mm; Dual-lane: L 510 × W 300 mm |
| PCB size (M size) | Single-lane: L 510 × W 510 mm; Dual-lane: L 510 × W 260 mm |
| Placement speed | Lightweight 8-nozzle head: 18,000 cph (0.20 s/chip, PC size) / 17,460 cph (M size); 3-nozzle head V2: 7,200 cph (0.50 s/chip) / 5,900 cph (0.61 s/QFP) |
| Placement accuracy (Cpk ≥ 1) | ±40 µm/chip, ±30 µm/QFP (under □12 mm), ±50 µm/QFP (□12–32 mm) |
| Component dimensions | 0402 chip* to L 32 × W 32 × T 12 mm (8nz); 0603 chip to L 150 × W 25 (diag. 152) × T 30 mm (3nz V2) |
| PCB exchange time | Single-lane: 4.0 s; Dual-lane: 0 s (cycle time 4.0 s or less) |
| Component supply | Front/rear tray feeders: max. 52; Front/rear feeder carts: max. 120 (4/8 mm tape); Stick: 12/28; Tray: max. 40 |
| Electric source | 3-phase AC 200–480 V, 2.5 kVA |
| Pneumatic source | Min. 0.5 MPa, 200 L/min (A.N.R.) |
| Dimensions / Mass | W 1,300 × D 2,798 × H 1,444 mm / 2,690 kg (main body only) |
Option:
- 3-nozzle head V2 (max. placement load 100 N).
- Support Pin Automatic Change.
- Feeder cart changeover specification (on-site exchange of tray feeder / 17-slot feeder cart).
- Inspection option before pick-up (polarity, component number, text / 2D code recognition).
- Multi-functional Transfer Unit for PoP components (tape, tray).
- M-size dual conveyor for direct connection with NPM-W2.
