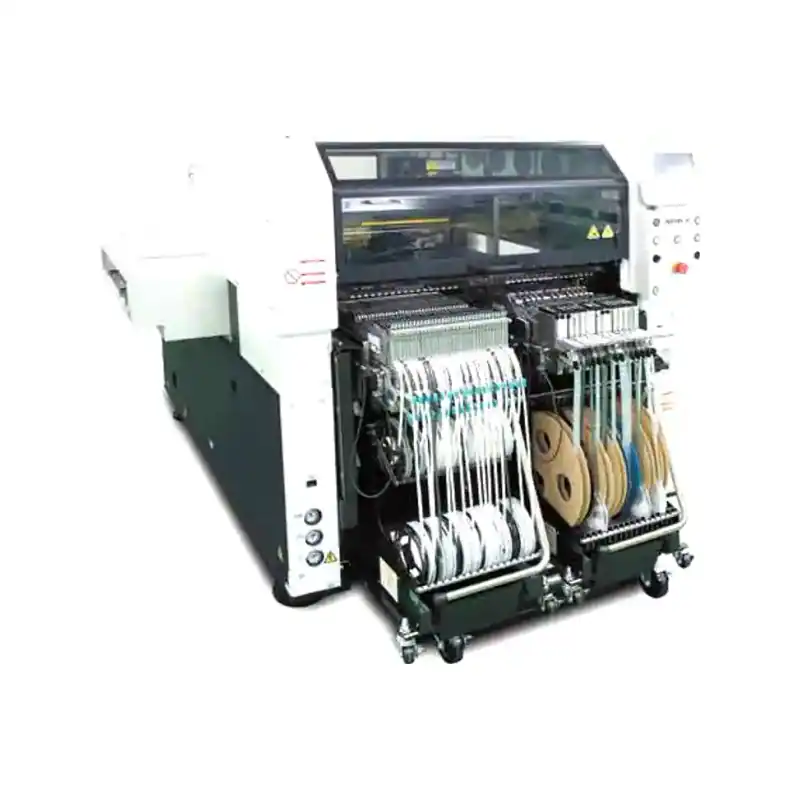

Panasonic NPM-WX&WXS — High-speed Dual-gantry Placement Machine
Precision for Smart Electronics Manufacturing
The Panasonic NPM-WX / NPM-WXS is a cutting-edge solution tailored for the demands of modern electronics manufacturing. Designed with modularity at its core, this SMT pick-and-place machine seamlessly integrates into your production line, delivering unparalleled precision and efficiency.
Performance That Adapts to Your Needs
Whether you’re dealing with complex PCBs or high-volume production, the NPM-WX / NPM-WXS excels in versatility and adaptability. Its advanced features ensure minimized downtime and consistently accurate placement, enhancing overall productivity in your smart factory setup.
Designed for the Next Generation of Manufacturing
With its high-speed capability and intelligent design, the Panasonic NPM-WX / NPM-WXS is a future-ready solution for any electronics manufacturer aiming to optimize their processes. It’s the machine that delivers reliable results, time and time again.
Highlights:
- Dual-gantry, dual-lane platform with increased PCB adaptability: batch mounting up to L 750 × W 610 mm (WX).
- Up to 43,000 cph (0.084 s/chip) with the Lightweight 16-nozzle head V2; 0201/03015 ultra-small chip support.
- One head on each side (front/rear) on WX — independent front/rear lane placement with no PCB transfer loss.
- Lightweight 8-nozzle, 4-nozzle and 3-nozzle head V2 (9,400 cph) selectable per production form.
- Misplacement prevention with Component Verification option; LCR checker option for quality.
- Off-line setup support station allows feeder cart setup outside the line.
Specification
| Model ID / Model No. | NPM-WX: NM-EJM9D; NPM-WXS: NM-EJM2E |
| PCB dimensions (WX) | Single-lane batch: L 750 × W 610 mm; 2-position: L 350 × W 610 mm; Dual-lane batch: L 750 × W 300 mm; single transfer (batch): L 750 × W 590 mm |
| Max. speed (per head) | Lightweight 16-nozzle V2: 43,000 cph (0.084 s/chip); Lightweight 8-nozzle: 23,000 cph; 4-nozzle: 8,400 cph / 7,800 cph (QFP); 3-nozzle V2: 9,400 cph (0.383 s/chip) |
| Placement accuracy (Cpk ≥ 1) | 16nz V2: ±25 µm/chip; 8nz: ±40 µm/chip, ±25 µm/QFP; 4nz: ±20 µm/QFP; 3nz V2: ±20 µm/QFP |
| Component dimensions | 0201*/03015*/0402 chip to L 6 × 6 × 3 mm (16nz V2); 0402 to L 45 × 45 × 12 or L 100 × 40 × 12 (8nz); 0603 to L 120 × 90 × 40 or L 150 × 25 × 40 (4nz / 3nz V2) |
| Component supply | Tape: 4–104 mm; Front/rear 17-slot feeder carts: max. 136 (4/8 mm tape); Stick: max. 32 (WX) / 16 (WXS); Tray: max. 24–48; Tray stocker: max. 72–144 |
| Electric source | 3-phase AC 200–480 V; WX 3.0 kVA / WXS 2.1 kVA |
| Pneumatic source | Min. 0.5 MPa, 200 L/min (A.N.R.) |
| Dimensions / Mass | W 1,410 × D 2,570 × H 1,444 mm; WX 2,740 kg / WXS 2,660 kg (main body only) |
Option:
- Component Verification option (misplacement prevention).
- LCR checker option.
- Off-line setup support station.
- NPM-DGS data creation system; PCB info communication function.
- 0201 / 03015 chip placement (specific nozzle / feeder).
