Description
Cutting-Edge Surface-Mount Technology

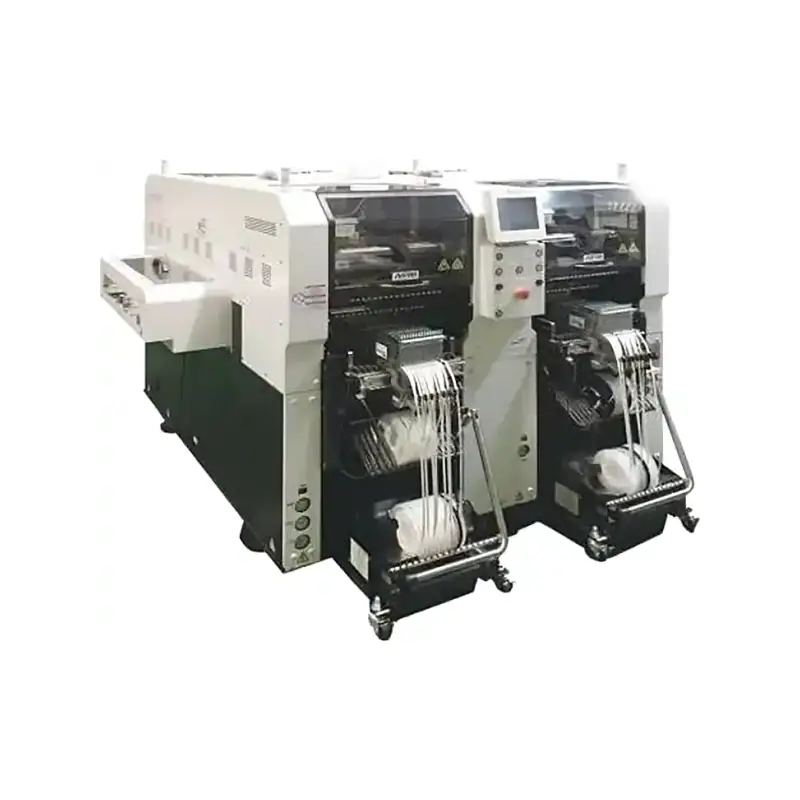

The Panasonic NPM-DX is your gateway to unparalleled precision and speed in electronics production. Designed for modern manufacturing, this modular, high-speed SMT pick-and-place machine offers exceptional performance tailored to meet the demands of smart electronics.
Efficiency at Every Step
Built for high productivity, the NPM-DX delivers precise placement of components, streamlining your manufacturing process while minimizing downtime. Its intelligent modular design allows for scalability, making it perfect for growing businesses and established operations alike.
Smart Features for Modern Needs
Optimized with advanced technology, the Panasonic NPM-DX seamlessly integrates into smart manufacturing environments. Its intuitive functionality ensures easy operation, while its reliability helps reduce production errors, placing it at the forefront of innovative electronics manufacturing solutions.
Highlights:
- High-speed modular placement machine achieving 46,200 cph (0.078 s/chip) with the Lightweight 16-nozzle head.
- High-accuracy mode: ±15 µm/chip placement for components 6 mm square or smaller.
- Supports 0201/03015 ultra-small components (optional) up to large components L 150 × W 25 × T 30 mm.
- Two independent placement lanes with alternating and independent mounting support for high productivity.
- Changeover ability: production data and rail width adjustment support minimizes time loss; PCB ID read-in type automatic changeover.
- NPM-DGS data creation system and iLNB integrated line management for automated routine tasks.
Specification
| Model ID / Model No. | NPM-DX / NM-EJM8D |
| PCB dimensions | Single-lane: L 50 × W 50 mm to L 510 × W 590 mm |
| Max. speed (per head) | Lightweight 16-nozzle: 46,200 cph (0.078 s/chip), high-accuracy mode 35,000 cph; 12-nozzle: 24,000 cph / 18,000 cph; 8-nozzle: 8,500 cph; 2-nozzle: 6,500 cph (0.554 s/chip) |
| Placement accuracy (Cpk ≥ 1) | ±25 µm/chip standard; ±15 µm/chip in high-accuracy mode (components ≤ 6 mm square); 8-nozzle: ±25 µm/chip, ±20 µm/QFP |
| Component dimensions | 0201*/03015*/0402 chip to L 8.5 × W 8.5 × T 3 mm (16nz); 0402 to L 45 × 45 or L 100 × 40 × 12 (12nz); 0603 to L 120 × 90 or L 150 × 25 × 30 (2nz) |
| PCB exchange time | 2.1 s (L 275 mm or less); 4.8 s (L 275–460 mm) with short spec. conveyor |
| Component supply | Taping: 4/8 mm tape max. 136; Stick: max. 32 (single stick feeder) |
| Tape width | 4 to 56 mm (16-nozzle head) |
| Electric source | 3-phase AC 200–480 V, 5.0 kVA |
| Pneumatic source | Min. 0.5 MPa, 200 L/min (A.N.R.) |
| Dimensions / Mass | W 1,665 × D 2,570 × H 1,444 mm / 3,600 kg (main body only) |
Option:
- 0201 / 03015 mm chip placement (specific nozzle / tape feeder).
- High-accuracy placement mode (±15 µm).
- iLNB integrated line management system; NPM-DGS data creation system.
- Automatic changeover with PCB ID read-in (external scanner / iLNB / M2M).
- Feeder cart and extension conveyors.
