Description
Built to Withstand Every Adventure
The Fujifilm FinePix XP Series is your ultimate companion for outdoor photography. Designed to endure the elements, this line of compact digital cameras is rugged, waterproof, and shockproof—ready to keep up with your active lifestyle.
Reliability in Harsh Conditions
Whether you’re hiking through mountainous trails, enjoying a day at the beach, or snorkeling underwater, these cameras are engineered for durability and outstanding performance. With their resilient design, you can focus on capturing life’s most exciting moments without worrying about damage.
Compact and Easy to Use
The FinePix XP Series combines ease of use with high-quality results in the great outdoors. Its lightweight construction and intuitive interface make it ideal for photographers of all skill levels. Bring your adventures to life with vivid, detailed imagery.
Highlights:

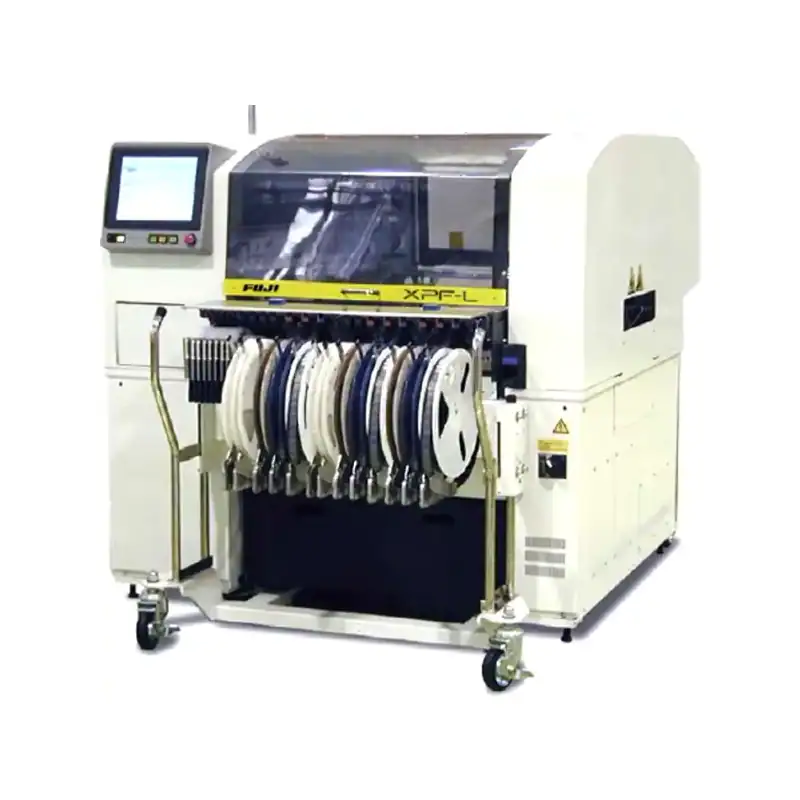

- The XPF is the first machine in the world to realize “dynamic head exchange” and achieve “borderless optimization” — line throughput is improved dramatically.
- High-speed multi-purpose mounter: XPF-L for versatility and XPF-W for large PCB support (686 × 508 mm).
- Revolver Auto-Tool (12 nozzles): 25,000 cph (XPF-L) with 0402 (01005) to 20 × 20 mm components.
- Single Nozzle auto-tool for large components up to 45 × 150 (68 × 68) mm, height 25.4 mm.
- Glue Auto-Tool for in-line dispensing (0.2 s/shot, ±0.1 mm Cpk ≥ 1.00).
- Up to 3 auto-tools held in the auto-tool station (XPF-W) — head exchange without stopping production.
- Wide range of parts supply units: MFU-30 (50 feeders), MFU-40 (64 feeders), BTU-A tray units, MTU-A/II multi tray units.
Specification
| Machine | FUJI XP-F (XPF-L / XPF-W) |
| Auto-tools | Revolver Auto-Tool (12 nozzles; 2 on XPF-L / 3 on XPF-W); Single Nozzle (6 on XPF-L / 8 on XPF-W); Glue Auto-Tool |
| Supported parts | Revolver Auto-Tool: 0402 (01005) to 20 × 20 mm, max. height 3.0 mm; Single Nozzle: 1005 (0402) to 45 × 150 (68 × 68) mm, max. height 25.4 mm |
| Machine tact | XPF-L: 0.144 s/component (25,000 cph); XPF-W: 0.145 s/component (24,800 cph) with Revolver Auto-Tool; Single Nozzle: 0.40 s (9,000 cph) / 0.418 s (8,600 cph) |
| Placing accuracy | Small chip parts: ±0.050 mm Cpk ≥ 1.00 (±0.066 mm Cpk ≥ 1.33); QFP parts: ±0.040 mm Cpk ≥ 1.00 (±0.053 mm Cpk ≥ 1.33) — Revolver Auto-Tool |
| PCB size (L × W) | Max. 457 × 356 mm, thickness 0.4 (0.3) to 5.0 mm (XPF-L); 686 × 508 mm, thickness 0.4 to 6.5 mm (XPF-W); min. 50 × 50 mm |
| PCB loading time | 1.8 s (XPF-L) / 3.5 s (XPF-W) |
| Dispense | 0.2 s/shot, dispense position accuracy ±0.1 mm Cpk ≥ 1.00 (Glue Auto-Tool) |
| Machine dimensions | XPF-L: L 1,500 × W 1,607.5 × H 1,419.5 mm; XPF-W: L 1,500 × W 1,762.5 × H 1,422.5 mm (conveyance height 900 mm) |
| Machine weight | XPF-L: 1,500 kg; XPF-W: 1,860 kg |
Option:
- Glue Auto-Tool (1 syringe per glue station, 6/8 feeder slots).
- MFU-30 / MFU-40 multi feeders (W8 feeders).
- BTU-A / BTU-A II bowl tray units (6 types, stackable); MTU-A / MTU-A II multi tray units (20/28 WA or trays).
- Wide fiducial camera; die pose unit.
- Reel holder (while the main machine is running); feeder loading stage.
