Description
Fast and Flexible SMT Chip Mounter

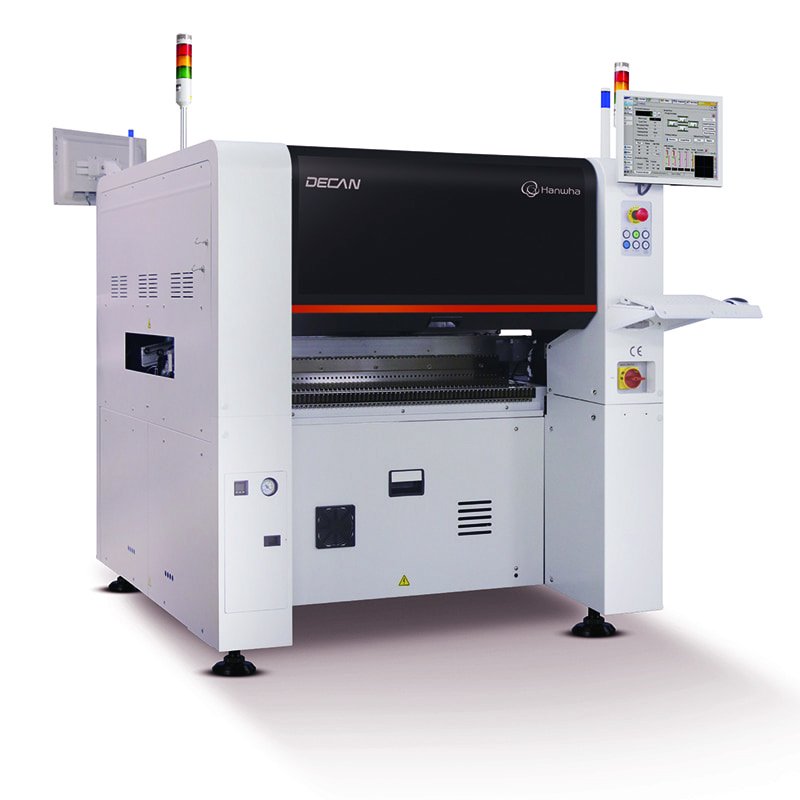

The Hanwha DECAN S1 is your ultimate solution for medium-speed surface mount technology (SMT) chip placement. Designed specifically for automated PCB assembly, this machine ensures precision, speed, and reliability.
Optimize Your Production Workflow
Engineered with advanced features, the DECAN S1 provides unmatched flexibility for a variety of applications in electronics manufacturing. Its intelligent design simplifies processes while maintaining high accuracy, making it the ideal choice for medium-speed setups.
Reliable and Efficient Performance
With the Hanwha DECAN S1, you can confidently boost productivity. It integrates seamlessly into your workflow, reducing downtime and delivering consistent, high-quality output for your circuit board assembly needs.
Specifications
- Placement Speed: Up to 47,000 CPH (Optimum)
- Spindles: 10 spindles on 1 gantry
- Placement Accuracy: ±28μm for chips, ±35μm for ICs
- PCB Size: Standard 510 x 510 mm, optional up to 1,500 x 460 mm
- Component Range: Fly: 03015 ~ □16 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector (MFOV)
- Feeder Capacity: Standard 60 lanes, expandable up to 120 lanes
- Dimension：L 1,430 x D 1,740 x H 1,485
- Machine Weight: Approx. 1,600 kg
- Alignment：Fly Camera, Fix Camera
