Advanced Modular Smart Factory Platform

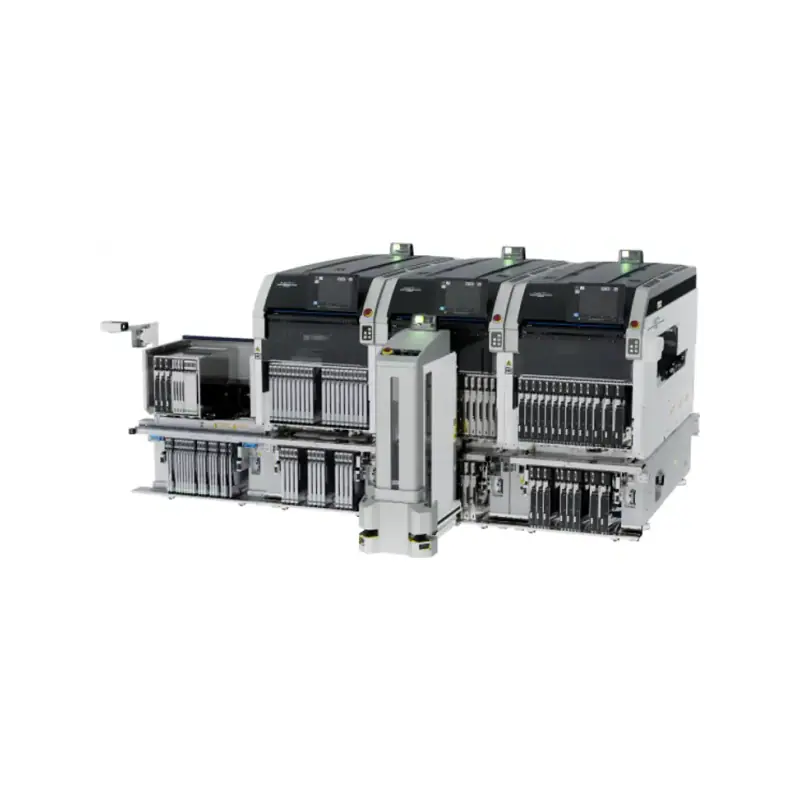

The FUJI NXTR redefines efficiency in surface-mount technology (SMT) processes. Designed with modularity at its core, this high-end platform adapits seamlessly to your manufacturing needs, ensuring that productivity and quality are never compromised.
Streamline Electronic Component Mounting
Engineered specifically for electronic component mounting, FUJI NXTR delivers unparalleled precision and speed. Its innovative pick-and-place mechanism enhances accuracy, making it ideal for both high-volume production lines and intricate assemblies.
Maximize Productivity with Cutting-Edge Features
The FUJI NXTR represents the pinnacle of manufacturing technology. Whether you’re seeking smarter workflows or higher throughput, this platform is built to help you achieve your operational goals without sacrificing quality.
Highlights:
- FUJI Smart Factory Platform: 1R module (one module base) and 2R module (two module base) for optimal line configuration.
- Up to 50,000 cph with the RH20 rotary head; ±0.025 mm placement accuracy (Cpk ≥ 1.00).
- Handles panels up to 750 × 610 mm (1R module, single conveyor) — the largest in its class.
- Cassette-type feeders and Fuji Intelligent Feeder (W04 to W104) for fast changeover.
- Non-stop production with LCU (log data collection), automatic waste tape collection and predictive maintenance.
- Heads interchangeable from the front and both module sides for easy maintenance.
Specification
| Machine | FUJI NXTR (1R module / 2R module) |
| Panel size (L × W) | 1R: 48 × 48 to 750 × 610 mm (single conveyor); 2R: 48 × 48 to 370 × 610 mm; Double conveyor dual conveyance: 750 × 280 mm (1R) / 370 × 280 mm (2R) |
| Heads | RH20 / RH08 / RH02 |
| Throughput | RH20: 50,000 cph; RH08: 30,000 cph; RH02: 9,000 cph (under optimum Fuji conditions) |
| Placing accuracy | ±0.025 mm Cpk ≥ 1.00 |
| Module weight | 1R: 755 kg; 2R: 865 kg |
| Machine size (L × W × H) | 1R: 795 × 1,740 × 1,480 mm; 2R: 1,590 × 1,740 × 1,480 mm |
| Machine weight | 1R: 540 kg; 2R: 1,080 kg |
| Air consumption | 1R: 60 L/min (ANR); 2R: 132 L/min (ANR) |
| Power / Air | 3-phase AC 200 to 230 V ±10 V (50/60 Hz) / 0.4 MPa |
| Part supply unit | Cassette-type feeder, Fuji Intelligent Feeder, Tray unit-RM |
Option:
- FUJI NXTR PM printer module (printing accuracy ±0.020 mm @6σ, panel up to 610 × 610 mm).
- MFU-52 / MFU-47 multi feeders; Tray unit-RM.
- LCU (Line Control Unit) for non-stop production; waste tape collection unit.
- Dip units (rotary-type / rotary-type plus model) and reject parts conveyors.
