Description
Unmatched Versatility for Electronics Manufacturing

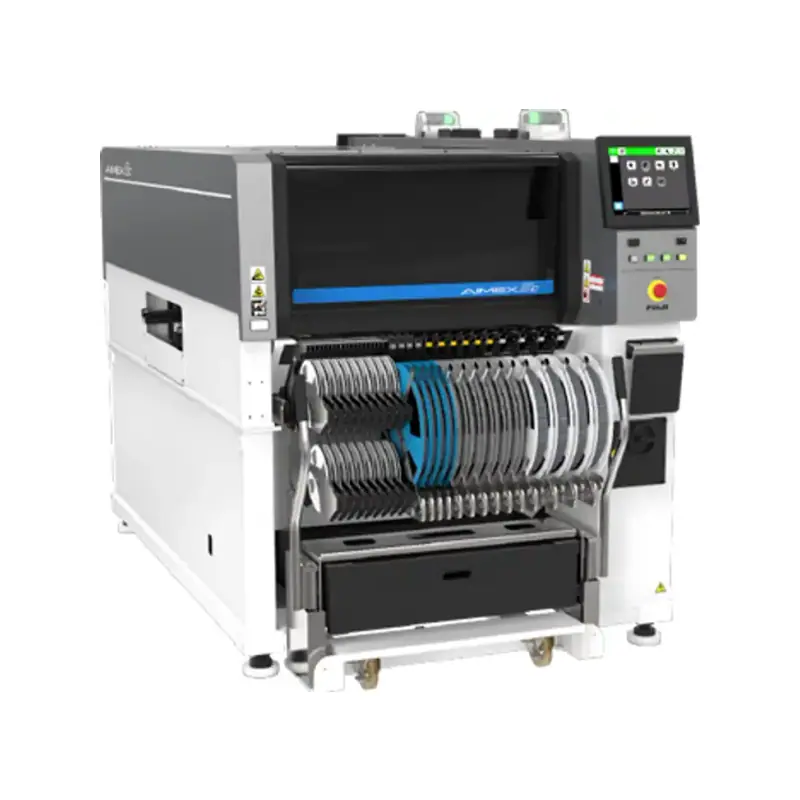

The FUJI AIMEX IIIc is an advanced, all-in-one SMT pick-and-place machine tailored for high-mix, variable-volume production needs. Perfectly suited for modern electronics manufacturing, it offers a seamless blend of functionality and versatility to streamline your production lines.
Optimized for High Component Capacity
Despite its compact footprint, the AIMEX IIIc stands out by accommodating a high component capacity, making it ideal for manufacturers looking to maximize efficiency without sacrificing valuable facility space. It’s expertly designed to balance performance and space optimization.
Engineered for Consistent Precision
From small-scale runs to larger production volumes, the FUJI AIMEX IIIc ensures reliable and accurate placement across a wide variety of component types and PCB sizes. Its innovative features are crafted for efficiency and accuracy, reflecting Fuji Corporation’s commitment to excellence in SMT technology.
Highlights:
- High-speed modular placing machine with 130 feeder slots and one- or two-robot configurations.
- Up to 80,000 cph with two H24S heads in productivity priority mode (40,000 cph with one robot).
- Wide head line-up: H24S, DX, V12, H08M(Q), H02F, H01, OF for chips to odd-form components.
- Placement accuracy ±0.025 mm (Cpk ≥ 1.00) with H24S and H02F heads.
- Panel size 48 × 48 to 508 × 400 mm for high-mix board handling.
- DX head offers flexible 12-/4-/1-nozzle configurations (27,000 / 12,000 / 5,800 cph).
Specification
| Machine | FUJI AIMEX IIIc |
| Feeder slot quantity | 130 |
| Panel size (L × W) | 48 × 48 to 508 × 400 mm |
| Heads | H24S, DX, V12, H08M(Q), H02F, H01, OF |
| Throughput (1 robot / 2 robots) | H24S standard: 35,000 / 70,000 cph; H24S productivity priority: 40,000 / 80,000 cph; DX: 27,000 (12 nz) / 54,000 cph; V12: 26,000 / 52,000 cph; H08M: 13,000 (14,000 priority) / 26,000 (28,000) cph |
| Placing accuracy (Cpk ≥ 1.00) | H24S: ±0.025 mm; V12: ±0.038 mm; H08M: ±0.040 mm; H02F: ±0.025 mm |
| Part supply units | Tape feeders, stick feeders, tray units, others |
| Power source | 3-phase 200 to 230 V ±10% (50/60 Hz) |
| Air | 0.5 MPa (ANR) |
Option:
- H02F high-accuracy head (±0.025 mm) for fine-pitch components.
- OF head for odd-form components; H01 head.
- Tray units and stick feeders.
