Description
Efficient and Durable PCB Handling

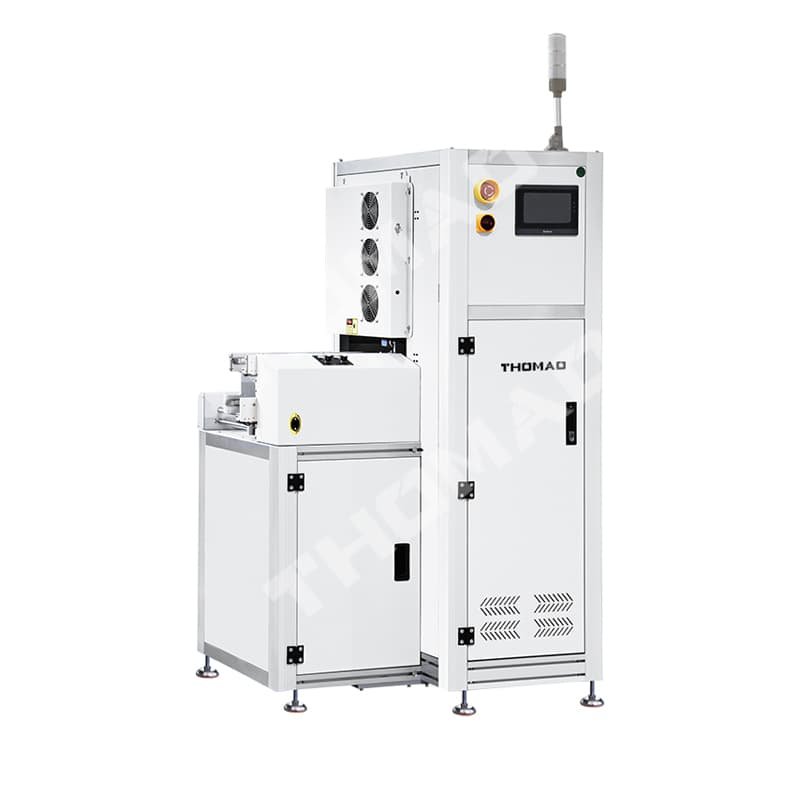

The high-end vertical NG buffer is an advanced SMT peripheral device engineered for top-tier performance in modern manufacturing lines. Designed to seamlessly manage rejected (NG) printed circuit boards, this system improves processing efficiency while eliminating common maintenance headaches with its innovative, beltless roller transmission architecture.
Precision and Flexibility in Design
Featuring precision lead screw adjustments, this buffer easily accommodates varying PCB dimensions with pinpoint accuracy. Its advanced operation modes—like FIFO, LIFO, pass-through, and NG isolation—provide unparalleled flexibility to meet diverse production requirements.
Seamless Integration and Intelligent Control
Equipped with SMEMA-compatible interfaces, the NG buffer guarantees smooth plug-and-play integration with upstream and downstream SMT equipment. The intelligent PLC control driven by user-friendly touch screens ensures accurate positioning, real-time status updates, and efficient performance monitoring.
| Parameter | ||
| Description | This device can cache AOl or SPI and other testing machine outof the NG and OK, OK board will flow to the next process,and the NG board will flow to the upper conveyorof the local machine to wait for manual confirmation | |
| Cycle time | Approx.10 seconds | |
| Maximun PCBsmagazine | 20pcs(or specify) | |
| Powersupply | AC1P110V/220V | |
| Power | Max 250VA | |
| Transport height | 900+20mm(Or customized) | |
| Transport direction | From left to right or right to left | |
| Specification | ||
| Model | BN-L-TN | BN-XL-TN |
| Dimension(L*W*H MM) | 1000*790*1640 | 1200*900*1640 |
| PCB size(MM) | 50*50-460*350 | 50*50-530*460 |
| Weight(KG) | 300 | 330 |
