Description
Efficient Automated PCB Feeding

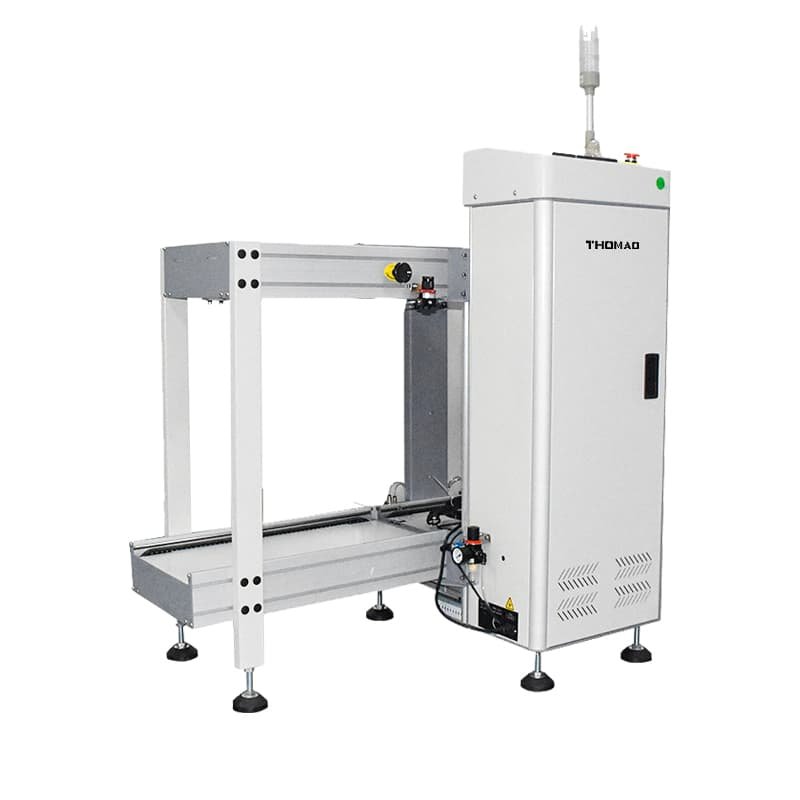

Optimize your production line with our high-end loader featuring state-of-the-art automated board feeding technology. Using a pneumatic pusher or a safe push-up mechanism, this loader ensures precise and reliable transfer of PCBs from the magazine rack directly onto the production line conveyor, one board at a time.
Versatile PCB Sizing Support
The loader accommodates a wide range of PCB sizes, from compact 50×50 mm boards to larger 620×460 mm configurations. This versatility makes it suitable for diverse manufacturing needs while maintaining consistent performance and compatibility with various board types.
Compact and Seamless Integration
Designed with factory efficiency in mind, the ergonomic and compact structure fits seamlessly into tight production spaces, ensuring operator safety with low-level magazine loading. Additionally, its SMEMA compatibility allows smooth integration with any major SMT line equipment for uninterrupted production flow.
Specification
| Description | Model | Dimension(L*W*H,mm) | PCB size | Weight(kg) |
| Standded Magazine loader | LD-M-TN | 50*50-330*250 | 355*320*563 | 140 |
| LD-L-TN | 50*50-445*330 | 460*400*563 | 200 | |
| LD-LL-TN | 50*50-530*390 | 535*460*563 | 240 | |
| LD-XL-TN | 50*50-530*460 | 535*530*563 | 300 |
