Description
High-Speed Precision for PCB Assembly

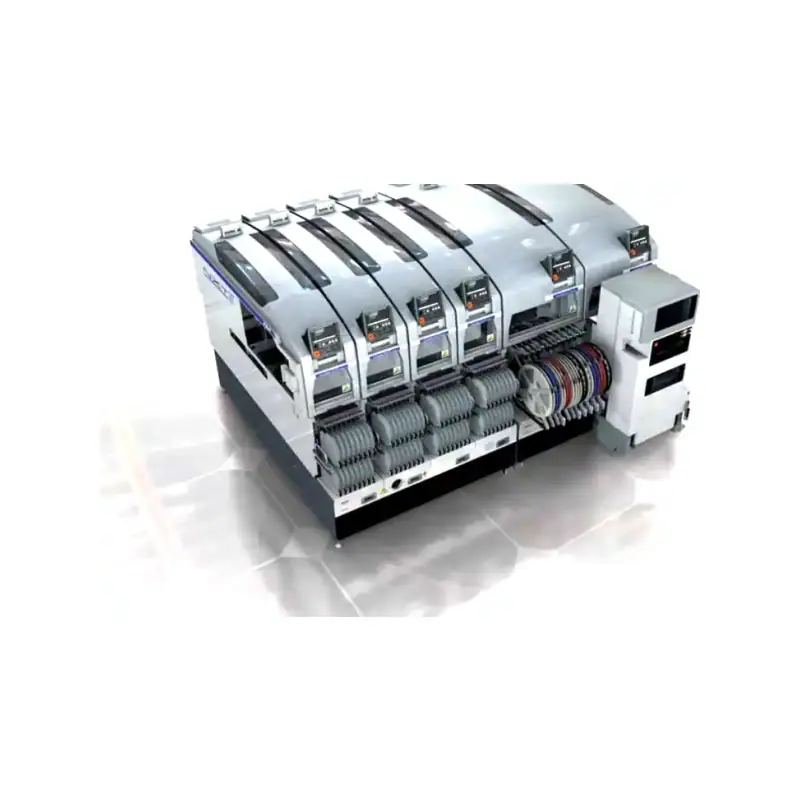

The FUJI NXT II is engineered to revolutionize printed circuit board assembly with its modular and high-speed design. Ideal for manufacturers seeking efficiency and accuracy, this Surface Mount Technology (SMT) pick-and-place machine ensures consistent, high-quality output on every run.
Customizable Design for Any Workflow
The modular architecture of the FUJI NXT II provides unparalleled flexibility, allowing you to adapt the machine to your production needs. Enhance productivity and scalability by easily adding or configuring modules to match your specific requirements.
Reliable Performance for Peak Efficiency
Whether you’re assembling intricate PCBs for consumer electronics or critical components for industrial devices, the FUJI NXT II delivers reliable performance at lightning speeds. Streamline your operations and meet growing demand without compromising on precision.
Highlights:
- Flexible and highly productive high-speed multi-function modular placing machine (NXT II: M3 II / M6 II / M6 II SP modules).
- Up to 26,000 cph with the V12 revolver head; 22,500 cph with H12HS high-speed head.
- Placement accuracy from ±0.030 mm (3σ) (H02/H01/G04) and ±0.038 mm (V12/H12HS, high-accuracy tuning ±0.050 mm).
- Handles 01005/0402 chips to 74 × 74 mm large components and 32 × 180 mm long connectors.
- 20–45 feeder types per module (8 mm tape) with intelligent feeders up to 104 mm tape width.
- Modular line architecture: 4M II base (1,390 mm) / 2M II base (740 mm) for flexible line lengths; continuous 0 s transfer in dual conveyor mode.
- Full support for production with the Fultrax system: parts verification, feeder maintenance warnings, alternate feeders, non-stop tray supply, panel traceability.
Specification
| Machine | M3 II / M6 II / M6 II SP |
| PCB size (L × W) | Double conveyor: 48 × 48 to 534 × 510 mm (M3 II) / 610 × 510 mm (M6 II); Single conveyor: 48 × 48 to 534 × 610 mm (M3 II) / 610 × 610 mm class (M6 II); *(W) over 280 mm uses single conveyance |
| Feeder capacity | M3 II: up to 20 types (8 mm tape); M6 II: up to 45 types; M6 II SP: up to 44 types |
| Placing accuracy (3σ, Cpk ≥ 1.00) | V12/H12HS: ±0.038 (±0.050) mm; H08M/H04S: ±0.040 mm; H08/H04/OF: ±0.050 mm; H02/H01/G04: ±0.030 mm; GL: ±0.100 mm |
| Throughput | V12: 26,000 cph; H12S/H12HS: 22,500 cph; H08M: 13,000 cph; H08: 10,500 cph; H04S: 9,500 cph; H04: 6,500 cph; H02: 5,500 cph; G04: 6,800 cph; H01: 4,200 cph; OF: 3,000 cph; GL: 16,363 dph (0.22 s/dot) |
| Applicable components | V12/H12HS: 0402 (01005) to 7.5 × 7.5 mm (H 3.0 mm); H08M: 0603 (0402) to 45 × 45 mm (H 13 mm); H08: 0402 (01005) to 12 × 12 mm (H 6.5 mm); H04S/H04: 1608 (0603) to 38 × 38 mm (H 6.5/9.5 mm); H02/H01/OF: 1608 (0603) to 74 × 74 mm (32 × 180 mm, H 25.4 mm); G04: 0402 (01005) to 15 × 15 mm |
| PCB load time | Double conveyor: 0 s (continuous); Single: 2.5 s (M3 II) / 3.4 s (M6 II / M6 II SP) |
| Module width | M3 II: 320 mm; M6 II: 645 mm |
| Machine dimensions | 4M II base: L 1,390 × W 1,934 mm; 2M II base: L 740 × W 1,934 mm; H 1,474 mm (M3 II) / 1,476 mm (M6 II) |
| Component supply | Intelligent feeder: 8–104 mm tape; Stick feeder: 4–32 mm component width; Tray units (fixed / Unit-L / Unit-LT / Unit-LTC) |
Option:
- Glue dispensing (glue head GL; dispensing accuracy ±0.100 mm).
- OF head and H01 for odd-form / large components.
- Non-stop tray parts supply function; alternate feeders to empty slots during production.
- Panel traceability data acquisition (panel ID reading device).
- Fultrax system (parts verification, feeder maintenance warnings, engineering panel stand).
