Comprehensive Quality Assurance for PCBs

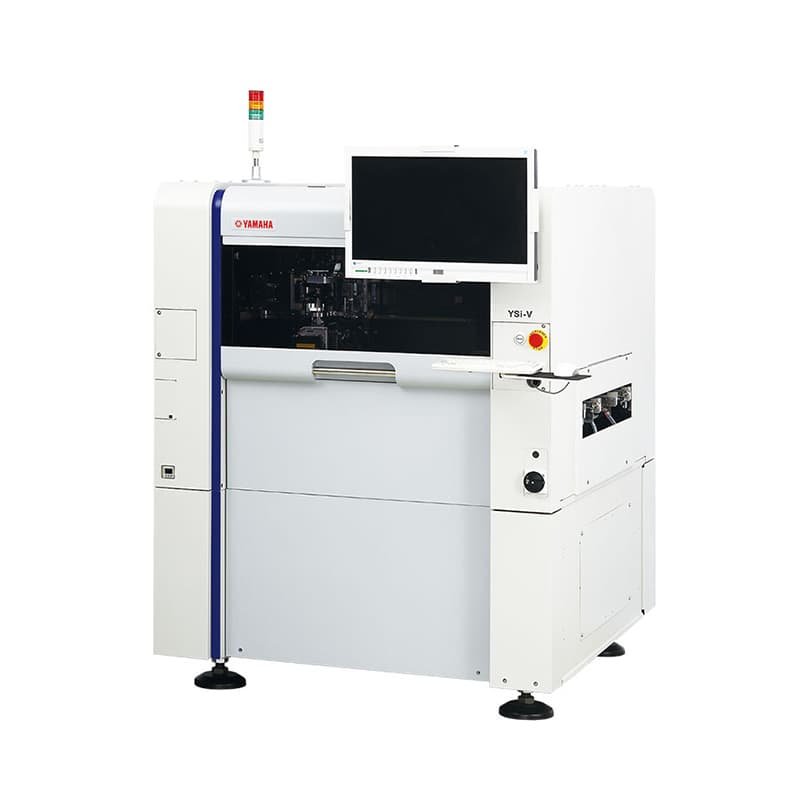

The Yamaha YSi-V is a premier automated optical inspection (AOI) system designed to elevate the quality control process in surface-mount technology (SMT) production lines. With its innovative features, it ensures accurate, efficient, and reliable printed circuit board (PCB) inspections at every step.
Unmatched Inspection Capabilities
Harness the power of high-speed, high-resolution 2D inspections for ultimate clarity. This system also offers optional 3D inspections for height and sloped surface analysis, as well as advanced 4-directional angular (4D∠) camera capabilities to catch every detail. Together, these features make the YSi-V a comprehensive solution for intricate PCB evaluations.
Effortless Software Integration
Supported by a robust software suite, the Yamaha YSi-V enhances production quality and operational efficiency. This integration enables seamless management, improving both inspection accuracy and throughput for demanding manufacturing environments.
| Applicable PCB mm | L610 x W560mm (Max) to L50 x W50mm (Min) (Single lane) Note : L750mm long length PCBs available (option) |
| Number of pixels | 12Megapixels |
| Resolution | 12μm / 7μm |
| Target items | Components status after mounting, components status and solder status after hardening |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V ±10% 50/60Hz |
| Air supply source | 0.45MPa or more, in clean, dry state |
| External dimension | L1,252 x W1,498 x H1,550mm (excluding protrusions) |
| Weight | Approx. 1,300kg |
