Description
Streamlined Cleaning Process

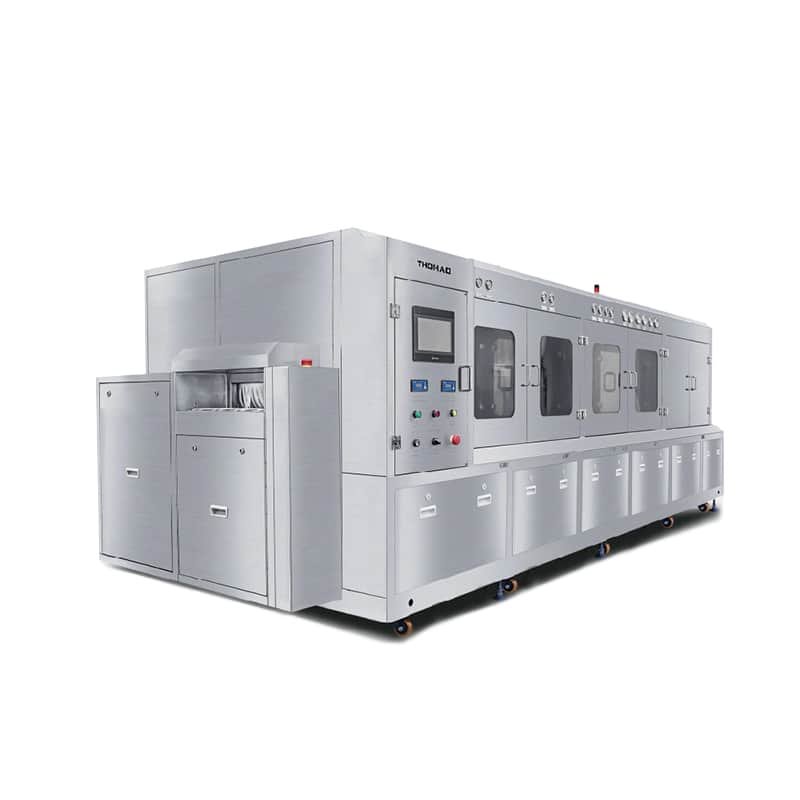

The PCBA In-line Cleaning Machine TX6300 is a state-of-the-art solution for efficient and continuous care of printed circuit board assemblies. This fully automatic system is designed to deliver a seamless cleaning process, combining advanced chemical washing, deionized (DI) water rinsing, and thorough hot air drying in an inline setup.
Engineered for Precision
With its precision-focused design, the TX6300 ensures optimal cleanliness and functionality of PCBAs, meeting the high-quality standards required in modern electronic manufacturing. Its inline operation saves both time and labor, increasing operational efficiency without compromising on performance.
Perfect Choice for Modern Manufacturing
Whether your production line demands consistent quality or streamlined operations, the PCBA In-line Cleaning Machine TX6300 offers a robust and reliable solution. Invest in this machine today to achieve unmatched results and elevate your manufacturing process to the next level.
TX5600 Parameter VS TX6300 Parameter
| Parameter | TX5600 (Offline) | TX6300 (Online) |
|---|---|---|
| Cleaning Type | Offline batch, basket loading | Online continuous, belt conveyor |
| PCBA/Basket Size | 610 × 560 × 100 mm × 2 layers | Up to 600 × 400 × 100 mm (max conveyor width) |
| Cleaning Method | Multi-spray with heating, rinse, hot air dry | High-pressure spray, chemical + DI rinse + hot air dry |
| Tank Capacity (Diluent/Clean) | 60L (dilution) / 17L (spray tank) | 240L (clean liquid tank) |
| Concentrate Tank | 30-32L | Equipped with concentrated tank + auto add/discharge |
| Power Supply | Not specified (typically lower, ~30-50 kW est.) | 380V 3P 50/60Hz, 110-122 kW |
| Machine Dimensions | Compact (exact not listed, smaller footprint) | 5200 × 1750 × 1650-1700 mm |
| Drying | Hot air dry 10-30 min | Multi-stage hot air dry (dry 1 & dry 2) |
| Control System | Touch screen, easy parameters, password | PC + PLC, English software, adjustable pressures |
| DI Water Resistivity Monitoring | Yes, real-time | Yes, monitoring system |
| Typical Use | Small-multi variety, high-mix batches | High-volume batch, inline SMT lines |
