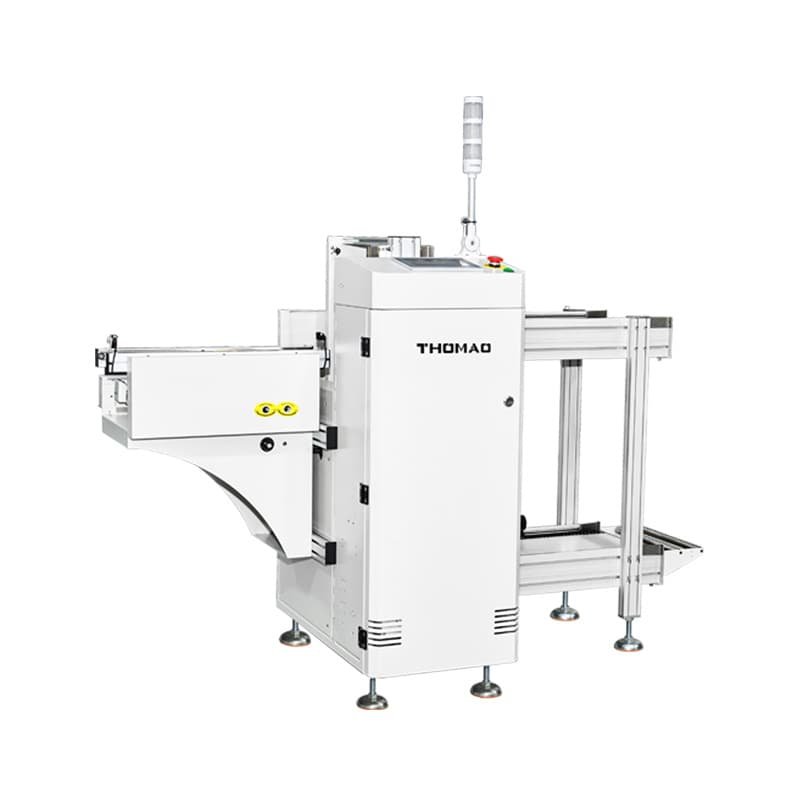

SMT Automatic magazine unloader&High and end Unloader UL series

Description

Streamline Your SMT Line with Automated Board Feeding

Our high-end PCB unloader ensures seamless and efficient transfer of circuit boards in your production line. Equipped with advanced pneumatic pushers or lift mechanisms, this system moves PCBs directly from magazine racks to downstream equipment, such as solder paste printers and pick-and-place machines. Experience precision-driven automation that maximizes productivity while minimizing downtime.

Damage-Free Handling with Advanced Precision

The unloader is built with state-of-the-art alignment and pusher systems to protect your delicate circuit boards. Its smooth pneumatic or servo-driven mechanisms prevent scratching, jamming, and structural stress, ensuring your PCBs remain intact and production-ready.

Versatile and Space-Conscious Design

This device features adjustable width settings, both manual and automatic, to accommodate various PCB sizes—from small prototypes (50 × 50 mm) to larger production boards (620 × 460 mm). Designed for ergonomic and space-saving efficiency, the unloader easily integrates into compact manufacturing cells while supporting 24/7 operations using PLC controllers, touch-screen interfaces, and SMEMA-compatible communication standards.

Specification
