Description
High Throughput for Enhanced Efficiency

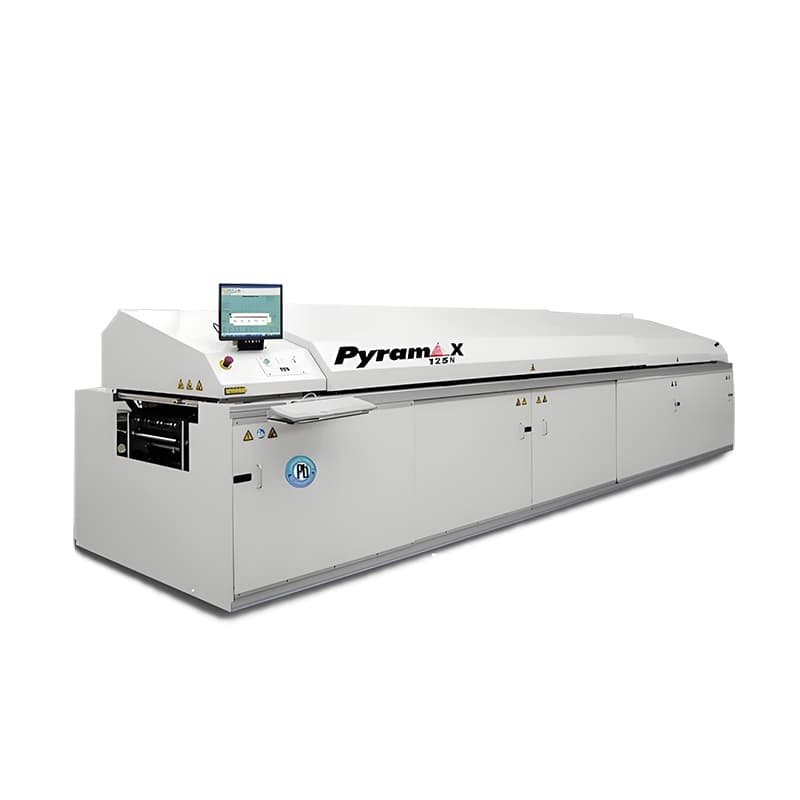

The BTU Pyramax 125N is engineered to deliver unparalleled performance for high-volume production environments. With 10 top and 10 bottom heating zones, it offers precise temperature control and uniform heat distribution, making it a go-to choice for demanding printed circuit board (PCB) solder reflow processes.
Advanced Nitrogen-Atmosphere Operation
Designed to work in a nitrogen atmosphere, this convection reflow oven ensures optimum soldering quality by reducing oxidation and delivering a cleaner finish. Its advanced design prioritizes precision and reliability, aligning with the strict standards of modern electronics manufacturing.
Precision Meets Versatility
The BTU Pyramax 125N combines cutting-edge technology with user-friendly functionality. Whether you’re working with sensitive components or complex multilayer boards, this reflow oven provides the consistency and adaptability you need for exceptional results.
BTU Pyramax 125N Key Specifications
- Heated Zones: 10 top / 10 bottom
- Heated Length: 125 inches (3,175 mm)
- Overall System Length: 230 inches (5,844 mm)
- Maximum Temperature: 350°C (optional 400°C)
- Conveyor Width: 2–18 inches (51–457 mm)
- Conveyor Speed: 10–60 in/min (25–152 cm/min)
Core Features
- Closed Loop Convection Control: Provides precise and programmable heat transfer, constant temperatures, and tight process control.
- Patented Flux Management System: Traps flux residue before it can settle inside the process chamber to maximize uptime.
- Wincon™ Control System: Powered by a Windows-based software interface featuring advanced diagnostics and analytical tools.
- Energy Pilot Software: Lowers idle utility consumption by adapting performance during production gaps.
